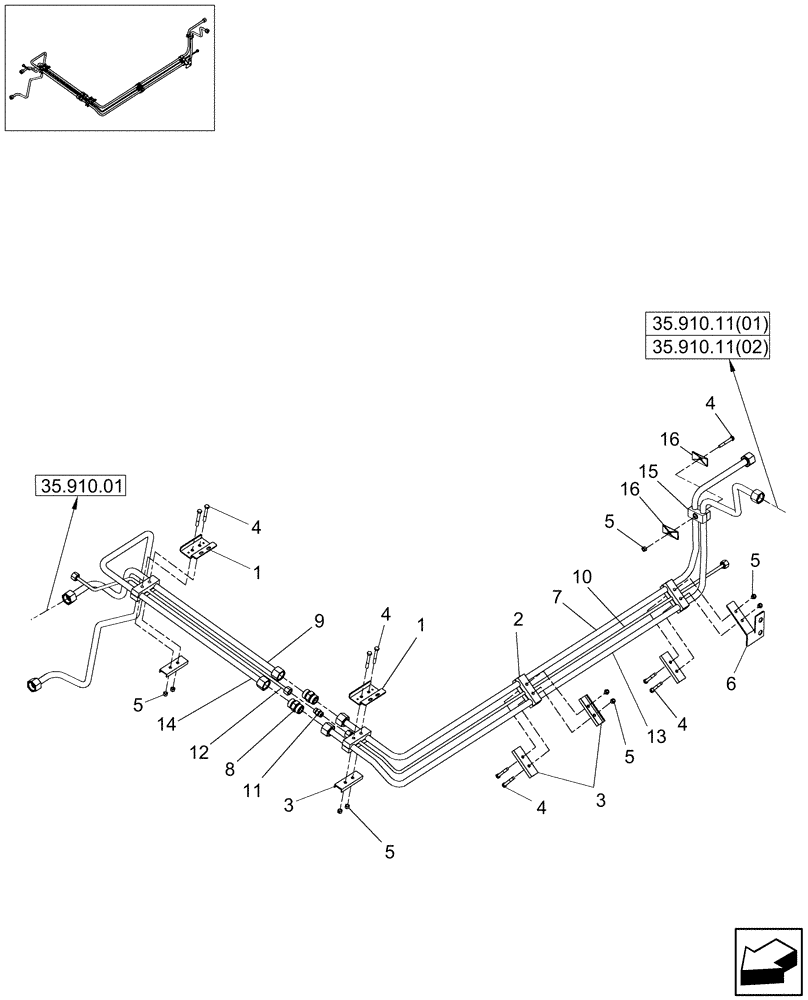

Запчасти Case IH 9010 (35.910.03[01]) - HYDRAULIC TUBES - ENGINE COMPARTMENT - 7010 (35) - HYDRAULIC SYSTEMS

1

87109755

BRACKET

2шт.

2

86998883

CLAMP

4шт.

3

87000242

CHANNEL

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

9шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.

6

87000942

BRACKET

1шт.

7

87105711

HYD TUBE,0.75" OD

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

2шт.

9

87000683

HYD TUBE,0.75" OD

1шт.

10

87000880

HYD TUBE,10 mm OD x 1605, 220.6 mm L

1шт.

11

84431546

UNION,11/16"-16 ORFS

1шт.

12

87106690

HYD TUBE,0.375" OD

1шт.

13

87284929

HYD TUBE,0.75" OD

1шт.

14

87000680

HYD TUBE,0.75" OD

1шт.

15

87000140

CLAMP,Tube, 19.05mm

1шт.

16

87000230

PLATE

2шт.
