Запчасти Case IH 9010 (35.780.12) - SELF-LEVELING SHOE HYDRAULICS (35) - HYDRAULIC SYSTEMS

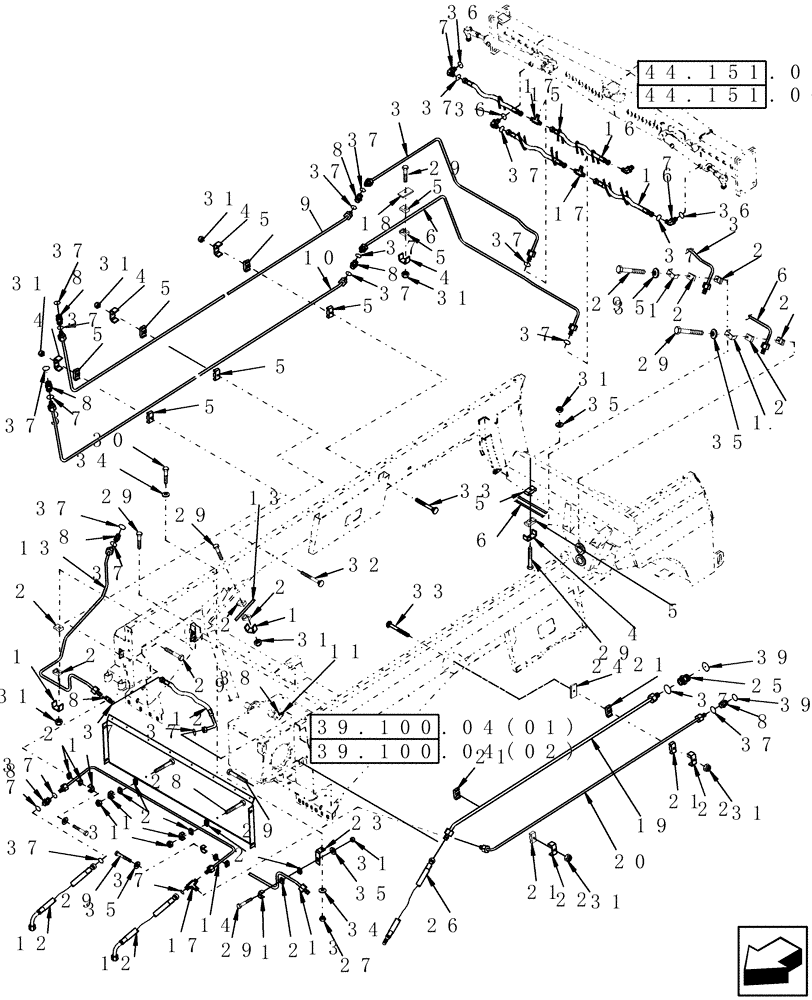

Схема запчастей Case IH 9010 - (35.780.12) - SELF-LEVELING SHOE HYDRAULICS (35) - HYDRAULIC SYSTEMS
13
18
33
1
35
30
1
2
5
8
5
31
37
10
37
9
37
8
28
21
37
29
31
37
29
7
5
7
29
1
29
22
34
21
37
37
37
16
17
26
2
2
37
31
11
37
6
38
5
3
29
35
31
5
17
39
1
19
37
2
8
20
15
1
2
29
31
2
21
31
12
29
2
3
37
36
36
5
8
34
8
5
14
37
2
37
12
5
2
24
37
29
37
2
6
4
21
36
29
8
31
31
37
37
13
6
13
27
44.151.06(01)
44.151.06(02)
39.100.04(02)
39.100.04(01)
4
35
32
37
1
23
2
12
33
37
4
8
4
35
37
35
17
5
8
31
16
31
39
37
5
29
22
1
25
37
2
4
31

Артикул

Название

Примечание

Количество

1

442340

SUPPORT

9шт.

2

433008

CLAMP

18шт.

3

86598056

HYD TUBE,12.70 mm DIA

SL

1шт.

4

431941

SUPPORT

5шт.

5

430357

CLAMP

Tube

10шт.

6

87011295

HYD TUBE,12 mm OD

SL

1шт.

7

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

8

84431547

UNION,13/16"-16 ORFS

8шт.

9

86574052

HYD TUBE,12.70 mm DIA x 2905, 495 mm L

SL

1шт.

10

86574061

HYD TUBE,12.70 mm DIA x 2860, 436 mm L

SL

1шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Fitting

1шт.

12

84068062

HYDRAULIC HOSE,9.53mm ID x 800mm L, SAE 100R2

SL

3шт.

13

86638092

HYD TUBE,12.70 mm DIA

SL

1шт.

14

86575634

HYD TUBE,12.70 mm DIA

SL

1шт.

15

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP Hose

6шт.

16

84068103

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

SL

4шт.

17

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Fitting

3шт.

18

434097

SUPPORT

1шт.

19

86584710

HYD TUBE,15.88 mm DIA x 1640, 80.3 mm L

SL

1шт.

20

86588844

HYD TUBE,12.70 mm DIA x 1698, 63.9 mm L

SL

1шт.

21

430356

CLAMP

4шт.

22

84814948

SUPPORT

2шт.

23

86586810

SUPPORT

Angle

1шт.

24

434103

PLATE

1шт.

25

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

26

86623270

HYDRAULIC HOSE

SL

1шт.

27

9706690

NUT,M8 x 1.25, Cl 8

1шт.

28

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

29

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

11шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

31

353308

NUT,M6 x 1.0, Cl 8

12шт.

32

120034

CARRIAGE BOLT,Short Nk, M6 x 40mm, Cl 8.8

1шт.

33

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 39
