Запчасти Case IH 9010 (35.480.06) - VALVE, FEEDER STACK, FIXED - 7010/8010 (35) - HYDRAULIC SYSTEMS

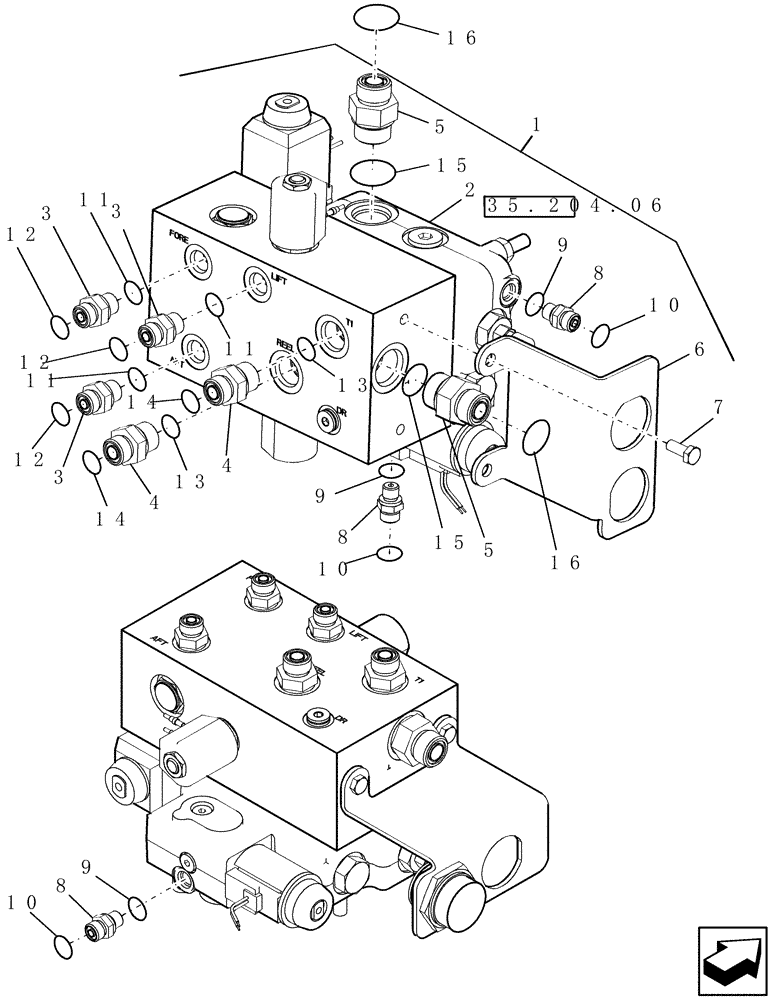

Схема запчастей Case IH 9010 - (35.480.06) - VALVE, FEEDER STACK, FIXED - 7010/8010 (35) - HYDRAULIC SYSTEMS
4
3
8
11
9
8
13
16
1
10
15
5
12
13
12
3
5
10
9
16
12
10
35.204.06
15
4
3
11
11
14
8
2
9
14
6
7

Артикул

Название

Примечание

Количество

1

87109741

HYDRAULIC VALVE

Includes: Refs 2 Thru 8

1шт.

2

87109740

HYDRAULIC VALVE

Feeder Stack, Standard

1шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

3шт.

4

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

5

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

6

86997309

BRACKET

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

3шт.

9

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 16
