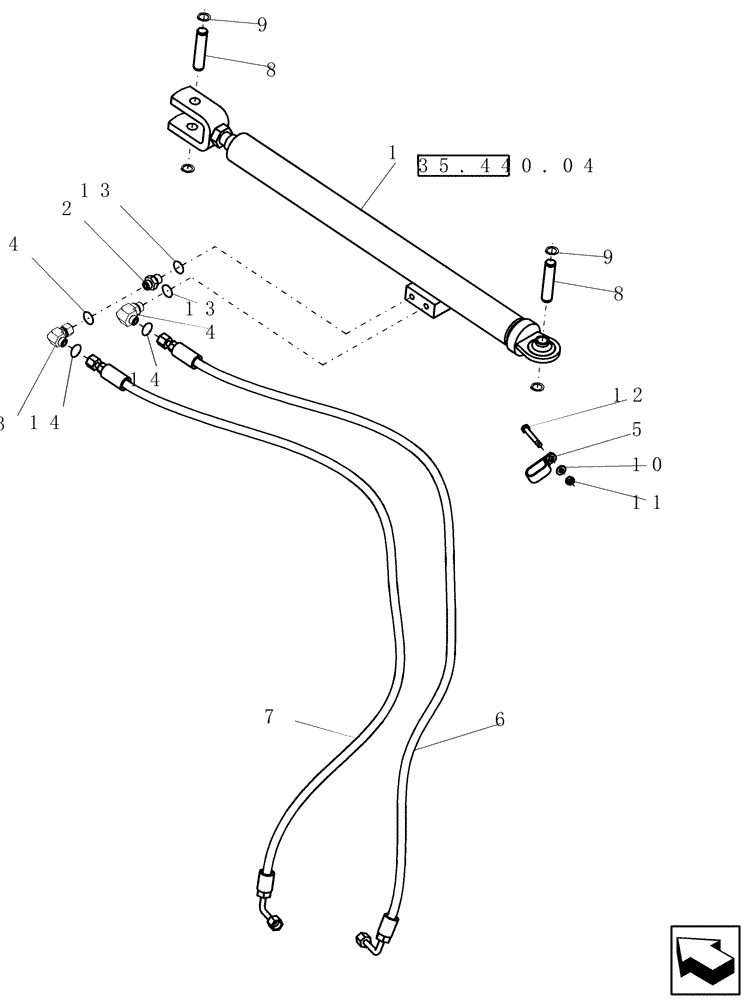

1
87552262
HYDRAULIC CYLINDER
Unloading Auger Swing; Rod Dia = 32MM
1шт.
Prior To PIN HAJ202863
1шт.
1
84126280R
REMAN-HYD CYLINDER
Unloading Auger Swing, Prior To PIN HAJ202863
1шт.
1
84126280C
CORE-HYD CYLINDER
Return Number
1шт.
1
87645216
HYDRAULIC CYLINDER
Unloading Auger Swing; Rod Dia = 40MM
1шт.
PIN HAJ202863 & After
1шт.
1
84126280R
REMAN-HYD CYLINDER
Unloading Auger Swing, PIN HAJ202863 & After
1шт.
1
84126280C
CORE-HYD CYLINDER
Return Number
1шт.
1
84126280
HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke
Replaces 87645216; Rod Dia = 40MM
1шт.
1
84126280R
REMAN-HYD CYLINDER
Unloading Auger Swing
1шт.
1
84126280C
CORE-HYD CYLINDER
Return Number
1шт.
2
86579673
HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB
1шт.
3
84989392
ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw
1шт.
4
86579688
ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB
1шт.
5
87107812
CLAMP
1шт.
6
87106483
FLEXIBLE HOSE,10mm ID x 1780mm L
Unloading Tube Swing Cylinder; L = 1780mm
1шт.
7
87106482
FLEXIBLE HOSE
Unloading Tube Swing Cylinder; L = 1830mm
1шт.
8
84254243
PIN,19.05mm OD x 89mm L
2шт.
9
300627
SNAP RING,M19, External
4шт.
10
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
1шт.
11
9706690
NUT,M8 x 1.25, Cl 8
1шт.
12
120061
BOLT,Hex, M8 x 60mm L, Cl 8.8
1шт.
13
86598101
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
2шт.
14
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3шт.
