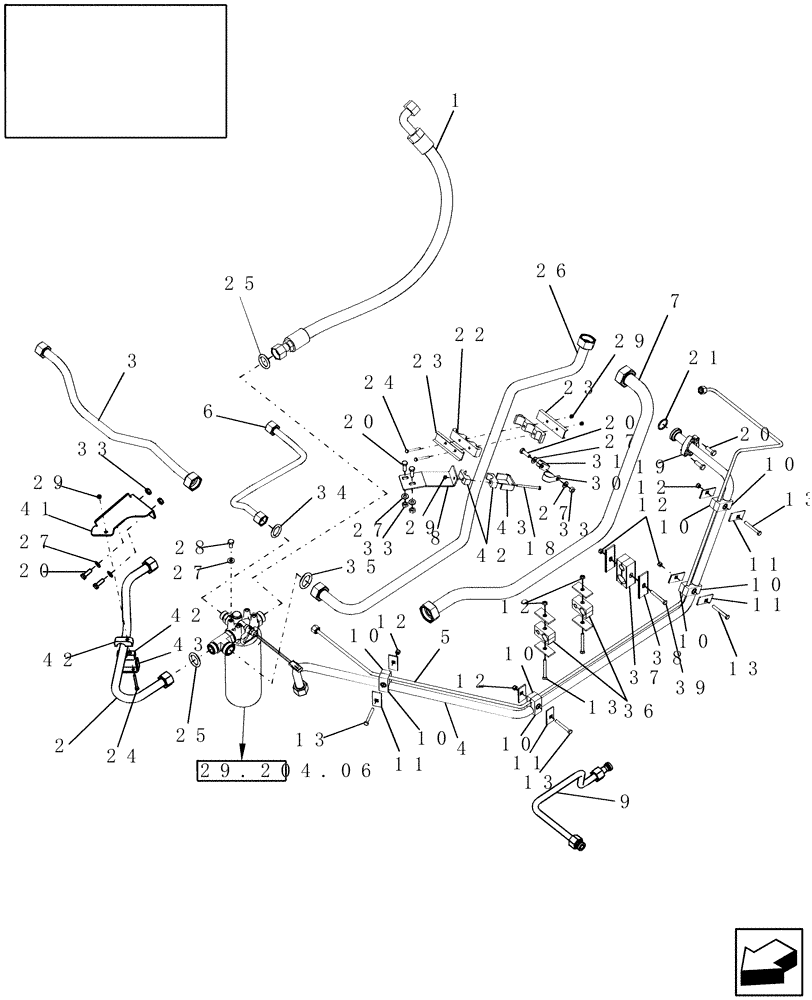

Запчасти Case IH 9010 (35.322.01[02]) - HYDRAULIC LINES - 9010 (35) - HYDRAULIC SYSTEMS

1

87283082

FLEXIBLE HOSE

Charge -, Serial Range: Pump-Filter

1шт.

2

87282543

HYD TUBE

Charge -, Serial Range: Filter-Valve

1шт.

3

86996178

HYD TUBE,1" OD

Gear Flow to Filter

1шт.

4

87284927

HYD TUBE,1" OD

PFC Pump to Main Valve

1шт.

5

87284930

HYD TUBE,0.375" OD

Load Sensing to PFC Pump

1шт.

6

87109047

HYD TUBE,0.75" OD

Charge Bypass

1шт.

7

87284926

HYD TUBE

Filter to PFC Pump

1шт.

8

87629050

BRACKET

1шт.

PIN HAJ202001 & After

1шт.

9

87284928

HYD TUBE,0.75" OD

Spreader Valve Pressure

1шт.

10

87000142

CLAMP,2 Hoses

Tube, Hydraulic

4шт.

11

87000230

PLATE

Hose Clamp

12шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

11шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

6шт.

17

87000242

CHANNEL

Clamp Back-up

2шт.

18

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

1шт.

19

86980728

COLLAR CLAMP

2шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

21

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

22

455533

CLAMP

Tube

2шт.

23

87283294

CHANNEL

Clamp Back-up

2шт.

24

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ORF, 1-7/16"

2шт.

26

87282544

HYD TUBE

Charge, Serial Range: Filter-Manifold

1шт.

Prior To PIN HAJ202001

1шт.

26

87624675

TUBE,1.25" OD

Charge Filter to Manifold

1шт.

Shown

1шт.

PIN HAJ202001 & After

1шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

28

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

29

353308

NUT,M6 x 1.0, Cl 8

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

33

100016

NUT,M10 x 1.5, Cl 8

5шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

36

87000146

CLAMP

2шт.

37

87283573

CLAMP

1шт.

38

87000231

PLATE

Hose Clamp

2шт.

39

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

41

87284346

SUPPORT

Bracket, Clamp

1шт.

42

457546

CLAMP

4шт.

43

743318

SUPPORT

1шт.
