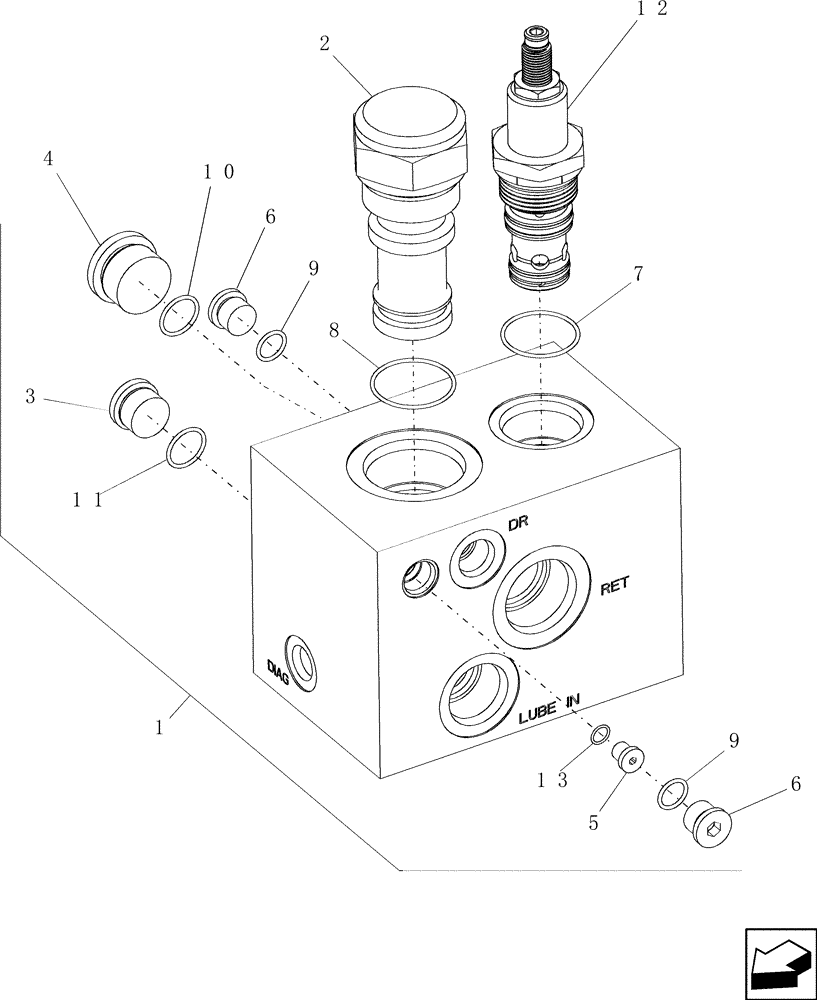

Запчасти Case IH 9010 (35.300.14[02]) - VALVE, HYDRAULIC PTO/CHARGE REGULATOR - COMPONENTS - PIN HAJ202245 D& AFTER - 7010/8010 (35) - HYDRAULIC SYSTEMS

1

87645690

VALVE

1шт.

2

87281715

HYDRAULIC VALVE

Includes: Ref 8

1шт.

3

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Includes Ref 11

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Includes: Ref 10

1шт.

5

87026245

ORIFICE

Includes: Ref 13

1шт.

6

9625178

PLUG,9/16" - 18 ORB

Includes: Ref 9

2шт.

7

1978123C1

SEAL KIT

1шт.

8

87025780

SEAL KIT

1шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

87645689

HYDRAULIC VALVE

Includes: Ref 7

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
