(35.300.10[01]) - RESERVOIR, COOLANT EXPANSION - PRIOR TO PIN HAJ202001 - 8010

Запчасти Case IH 9010 (35.300.10[01]) - RESERVOIR, COOLANT EXPANSION - PRIOR TO PIN HAJ202001 - 8010 (35) - HYDRAULIC SYSTEMS

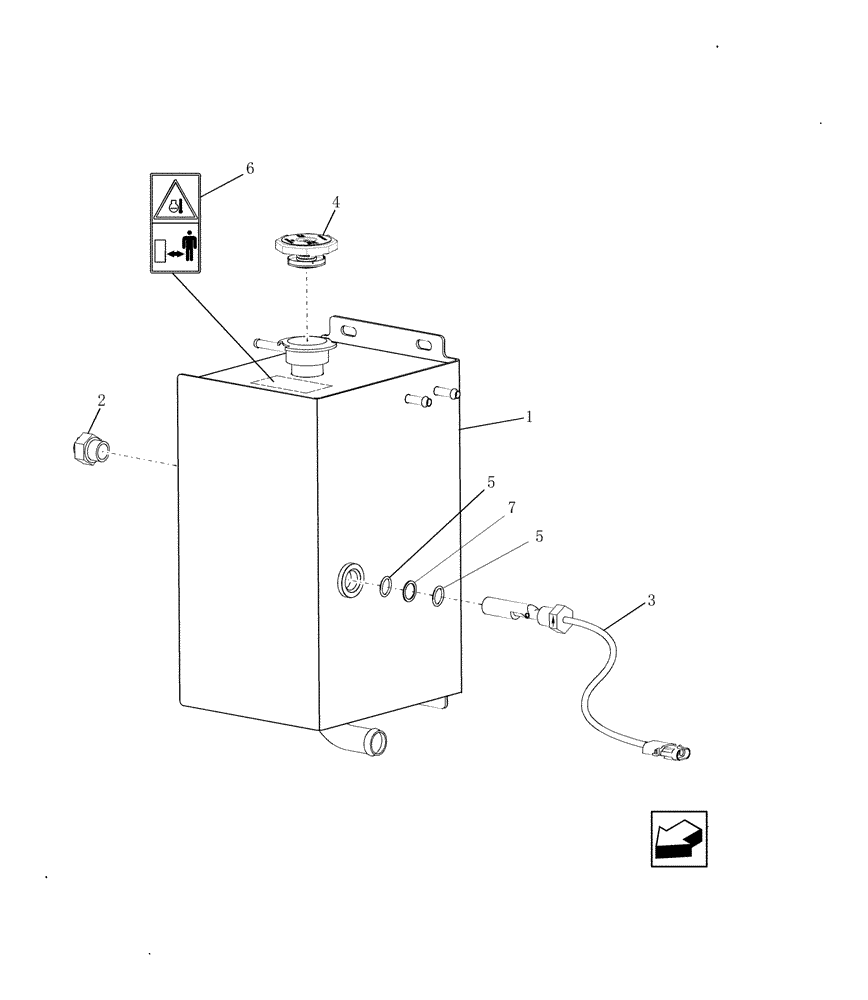

Схема запчастей Case IH 9010 - (35.300.10[01]) - RESERVOIR, COOLANT EXPANSION - PRIOR TO PIN HAJ202001 - 8010 (35) - HYDRAULIC SYSTEMS
5
4
5
6
1
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87550270

RESERVOIR, COOLANT E

Tank

1шт.

2

406721A1

GAUGE

Sight Glass

1шт.

3

122428A1

SWITCH

Fluid Level

1шт.

4

87109814

FILLER CAP

10 PSI

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

84432981

DECAL

1шт.

7

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

1шт.
