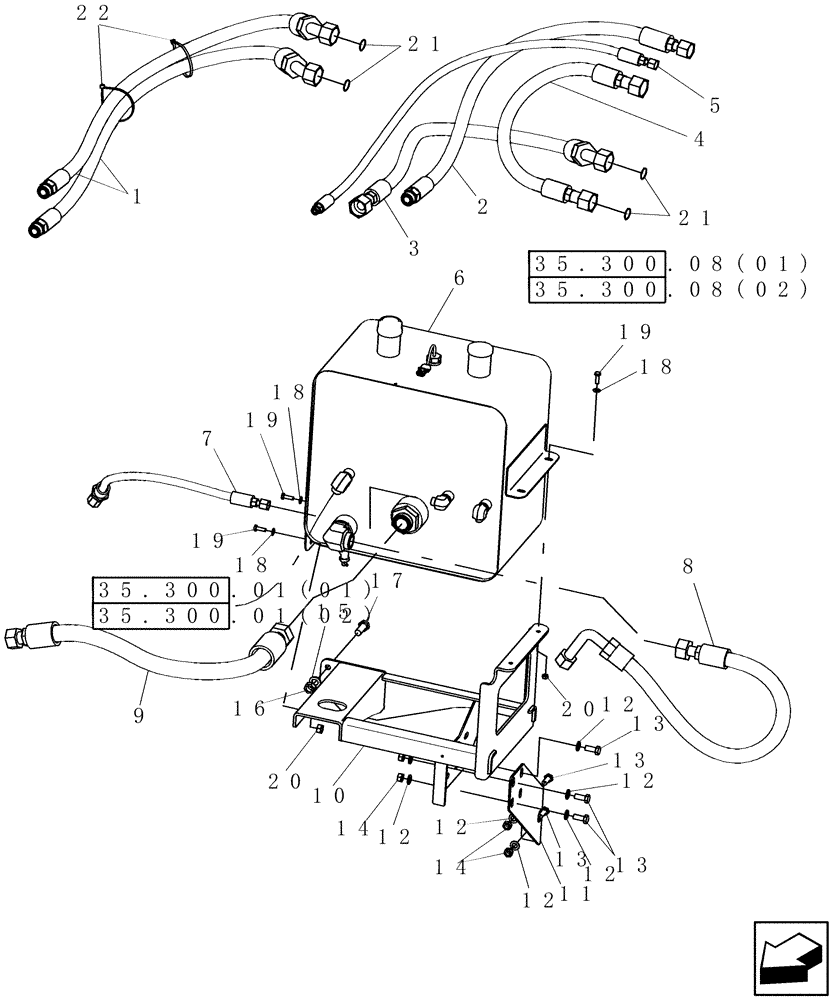

Запчасти Case IH 9010 (35.300.09[03]) - RESERVOIR, HYDRAULIC, WITH HOSES AND SUPPORTS - 8010 (35) - HYDRAULIC SYSTEMS

1

87105712

FLEXIBLE HOSE

Hydro Cooler Outlet

2шт.

2

87529196

FLEXIBLE HOSE

Motor to Aux Cooler Inlet

1шт.

3

87105714

FLEXIBLE HOSE

Aux Cooler Outlet

1шт.

4

87529197

FLEXIBLE HOSE

Air Screen Motor to Cooler Inlet

1шт.

5

87529198

FLEXIBLE HOSE

Air Screen Case Drain

1шт.

6

87548960

RESERVOIR, HYDRAULIC

1шт.

7

86999156

FLEXIBLE HOSE

PFC Pump, Drain

1шт.

8

86999154

FLEXIBLE HOSE

PFC Pump, Suction

1шт.

9

86999153

FLEXIBLE HOSE

Gear Pump, Suction

1шт.

10

86975645

BRACKET

1шт.

11

86976375

BRACKET

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

16

825-1416

NUT,M16, Cl 8

3шт.

17

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

3шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

22

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

2шт.
