Запчасти Case IH 9010 (35.300.09[01]) - RESERVOIR, HYDRAULIC, WITH HOSES AND SUPPORTS - 7010 (35) - HYDRAULIC SYSTEMS

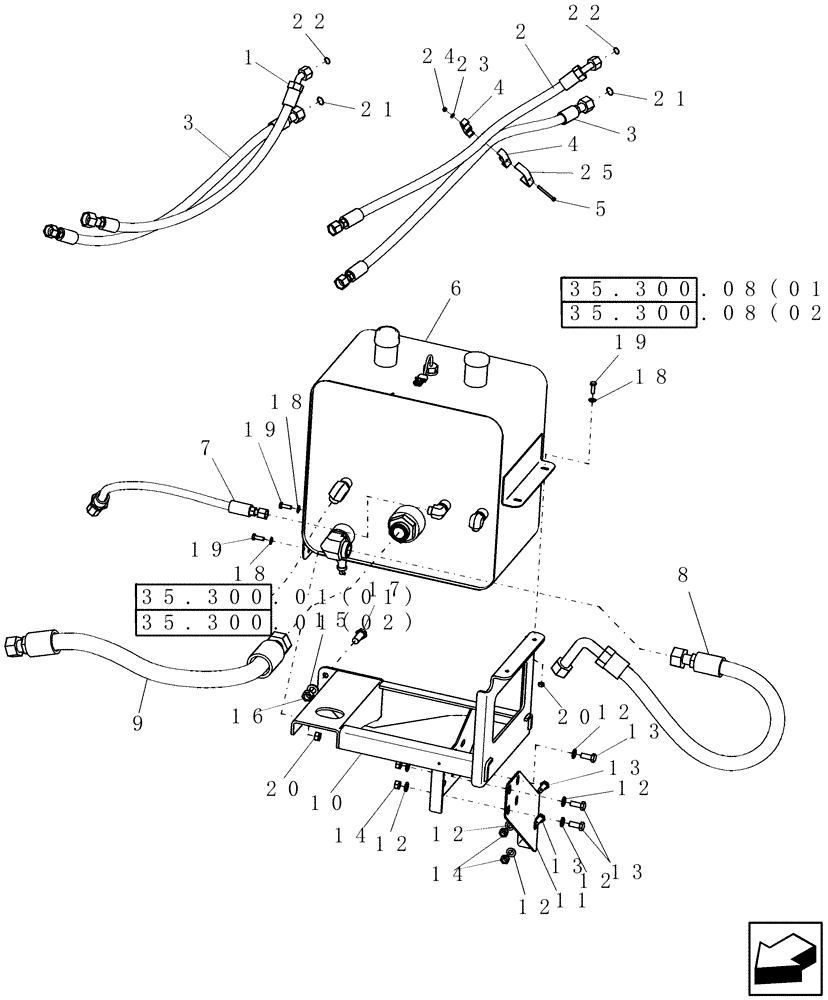

Схема запчастей Case IH 9010 - (35.300.09[01]) - RESERVOIR, HYDRAULIC, WITH HOSES AND SUPPORTS - 7010 (35) - HYDRAULIC SYSTEMS
14
19
12
8
15
6
22
24
4
18
13
17
21
19
21
35.300.08(02)
35.300.08(01)
35.300.01(01)
35.300.01(02)
3
18
4
12
12
23
13
10
19
9
12
25
12
3
11
1
14
22
2
13
20
16
18
13
20
5
7
12

Артикул

Название

Примечание

Количество

1

87397357

HOSE ASSY.

Aux Cooler Outlet; L = 957mm

1шт.

2

87397352

HOSE ASSY.

Aux Cooler Inlet; L = 1038mm

1шт.

3

87397348

HOSE ASSY.

Main Cooler; L = 1048mm

2шт.

4

457547

CLAMP

2шт.

5

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

6

87548960

RESERVOIR, HYDRAULIC

1шт.

7

86999156

FLEXIBLE HOSE

PFC Pump, Drain; L = 675mm

1шт.

8

86999154

FLEXIBLE HOSE

PFC Pump, Suction; L = 1030mm

1шт.

9

86999153

FLEXIBLE HOSE

Gear Pump, Suction; L = 1025mm

1шт.

10

86975645

BRACKET

1шт.

11

86976375

BRACKET

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

16

825-1416

NUT,M16, Cl 8

3шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

353308

NUT,M6 x 1.0, Cl 8

1шт.

25

743320

SUPPORT

1шт.

Выбрано товаров: 25
