Запчасти Case IH 9010 (35.300.01[02]) - HYDRAULICS - PTO REGULATOR VALVE - 9010 (35) - HYDRAULIC SYSTEMS

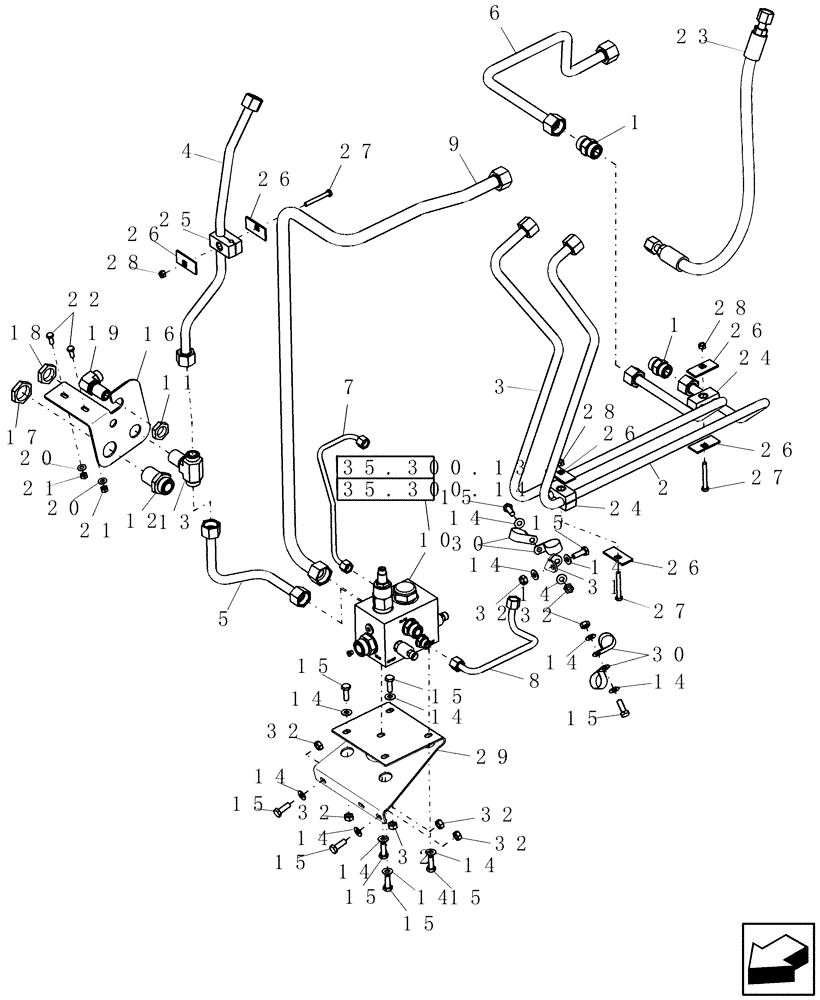

Схема запчастей Case IH 9010 - (35.300.01[02]) - HYDRAULICS - PTO REGULATOR VALVE - 9010 (35) - HYDRAULIC SYSTEMS
15
14
20
4
15
30
32
27
16
22
5
1
14
20
14
21
15
29
10
12
24
28
19
32
6
14
26
24
15
26
26
35.300.13
35.300.14
27
28
7
9
32
15
14
32
27
25
15
2
1
14
32
32
14
14
15
15
13
11
30
8
15
26
3
14
32
26
26
21
14
14
23
28
14
15
31
14
17
18

Артикул

Название

Примечание

Количество

1

84100407

UNION,1-3/16"-12 ORFS

2шт.

2

87284932

HYD TUBE,0.75" OD

Gear Pump to Fan

1шт.

3

87284933

HYD TUBE,0.75" OD

Gear Pump to RAS and Spreaders

1шт.

4

87281693

HYD TUBE,0.75" OD

Lube Supply, Tee to Cross

1шт.

5

87281692

HYD TUBE,0.75" OD

Lube Regulator, Supply to Valve

1шт.

6

87284928

HYD TUBE,0.75" OD

Spreader Valve Pressure

1шт.

7

87106673

HYD TUBE,0.375" OD

Drain, from PTO Regulator Valve

1шт.

8

86995886

HYD TUBE,0.50" OD

Lube Supply, to Rotor

1шт.

9

87587910

HYD TUBE,1" OD

PTO Regulator Valve Bypass

1шт.

10

0C

ORDER COMPONENTS

PTO/ Charge Regulator

1шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

87001274

BRACKET

Bulkhead

1шт.

17

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

18

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

19

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

87109746

FLEXIBLE HOSE

Cleaning Fan / Regulator Return

1шт.

24

87000140

CLAMP,Tube, 19.05mm

2шт.

25

87000154

CLAMP

1шт.

26

87000230

PLATE

Hose Clamp

6шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

29

87284344

BRACKET

Bracket

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

31

87314169

BRACKET

1шт.

32

100016

NUT,M10 x 1.5, Cl 8

8шт.

Выбрано товаров: 32
