Запчасти Case IH 9010 (35.220.04[01]) - PUMP, HYD. FEEDER - FROM PIN HAJ202001 - 7010/8010 (35) - HYDRAULIC SYSTEMS

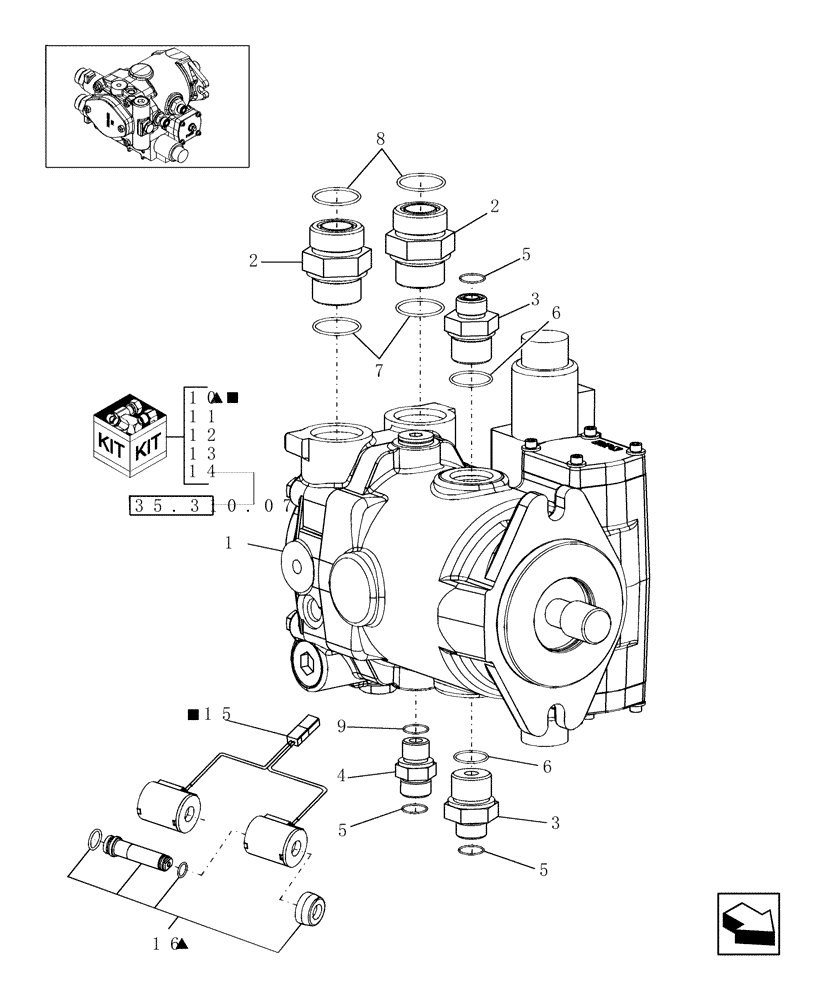

Схема запчастей Case IH 9010 - (35.220.04[01]) - PUMP, HYD. FEEDER - FROM PIN HAJ202001 - 7010/8010 (35) - HYDRAULIC SYSTEMS
15
8
4
5
35.310.07
6
9
10
5
2
6
16
1
5
3
14
12
2
13
3
11
7

Артикул

Название

Примечание

Количество

1

86638314

HYDRAULIC PUMP,40.6 CC

1шт.

86638314R

REMAN-HYD PUMP

8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), 7010 (2/07-9/08), Both FROM PIN HAJ202001

1шт.

86638314C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

2шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

2шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

3шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

87453375

SERVICE KIT

Servo Controller; Includes: Refs 15, 16, Plus Gasket 87453380 (1) & Screw 61-33132 (6)

1шт.

11

87453381

VALVE, PRESSURE RELI

EF

1шт.

12

87453382

SEAL KIT

KIT, Seal Relief

1шт.

13

87453383

SEAL KIT

KIT, Shaft Seal

1шт.

14

87744539

SERVICE KIT

Feeder Pump Charge Supply

1шт.

15

87450564

SOLENOID,Coil Pair

Solenoid Coil

1шт.

16

87450565

SOLENOID

Tube

1шт.

Выбрано товаров: 18
