Запчасти Case IH 9010 (35.220.03[02]) - PUMP, TRIPLE GEAR (35) - HYDRAULIC SYSTEMS

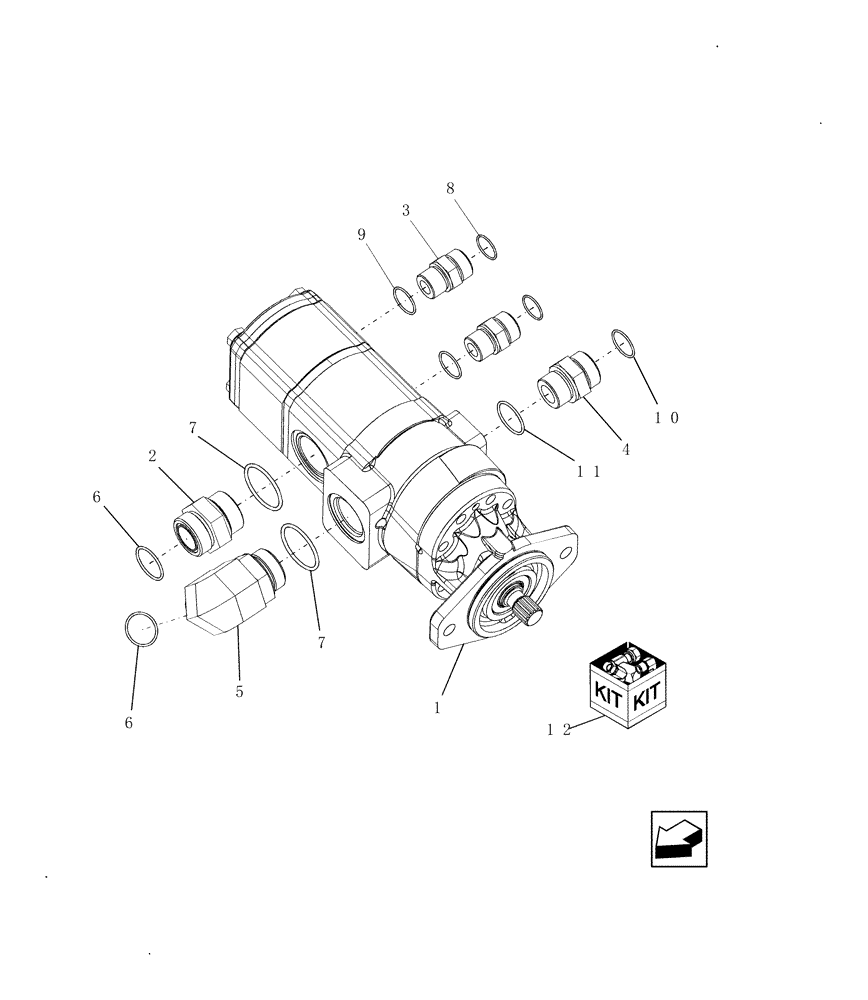

Схема запчастей Case IH 9010 - (35.220.03[02]) - PUMP, TRIPLE GEAR (35) - HYDRAULIC SYSTEMS
5
4
7
3
11
1
6
9
12
6
10
8
7
2

Артикул

Название

Примечание

Количество

1

87646990

HYDRAULIC PUMP

1шт.

84273626C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

87646990C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

2

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Includes Refs 6 & 7

1шт.

3

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Includes Refs 8 & 9

2шт.

4

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Includes Refs 10 & 11

1шт.

5

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

Includes Refs 6 & 7

1шт.

6

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

7

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

9

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

11

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 13
