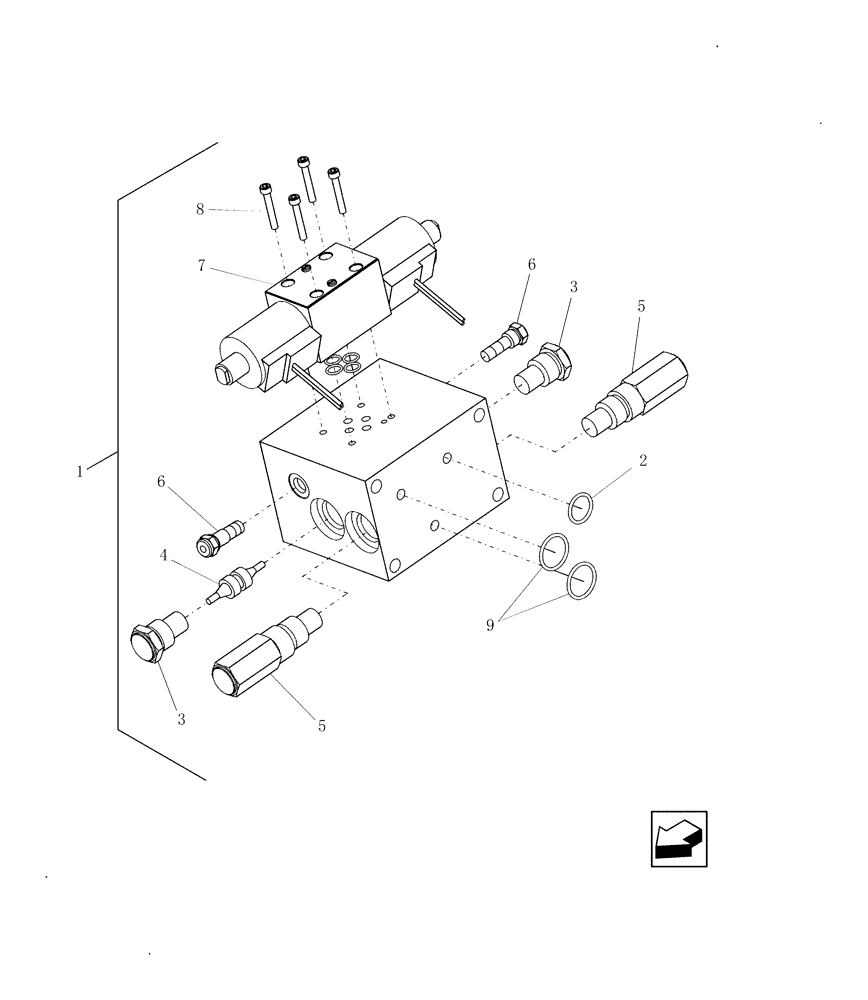

Запчасти Case IH 9010 (35.204.07) - VALVE, LATERAL TILT, COMPONENTS - 7010/8010 (35) - HYDRAULIC SYSTEMS

1

86995690

CONTROL VALVE

ADD - ON - Lateral Tilt

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

3

87433998

CHECK VALVE,7/8" - 14

2шт.

4

149940C1

PISTON

1шт.

5

190986A1

VALVE PRESSURE RELIE,7/8" - 14

2шт.

6

190704A1

CHECK VALVE

2шт.

6a

190707A1

SEAL KIT

Repair, Ref 6

2шт.

7

86995306

VALVE

Three Position, Four Way

1шт.

7

86995306R

REMAN-HYD VALVE

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08)

1шт.

7

86995306C

CORE-VALVE HYD

Return Number

1шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.
