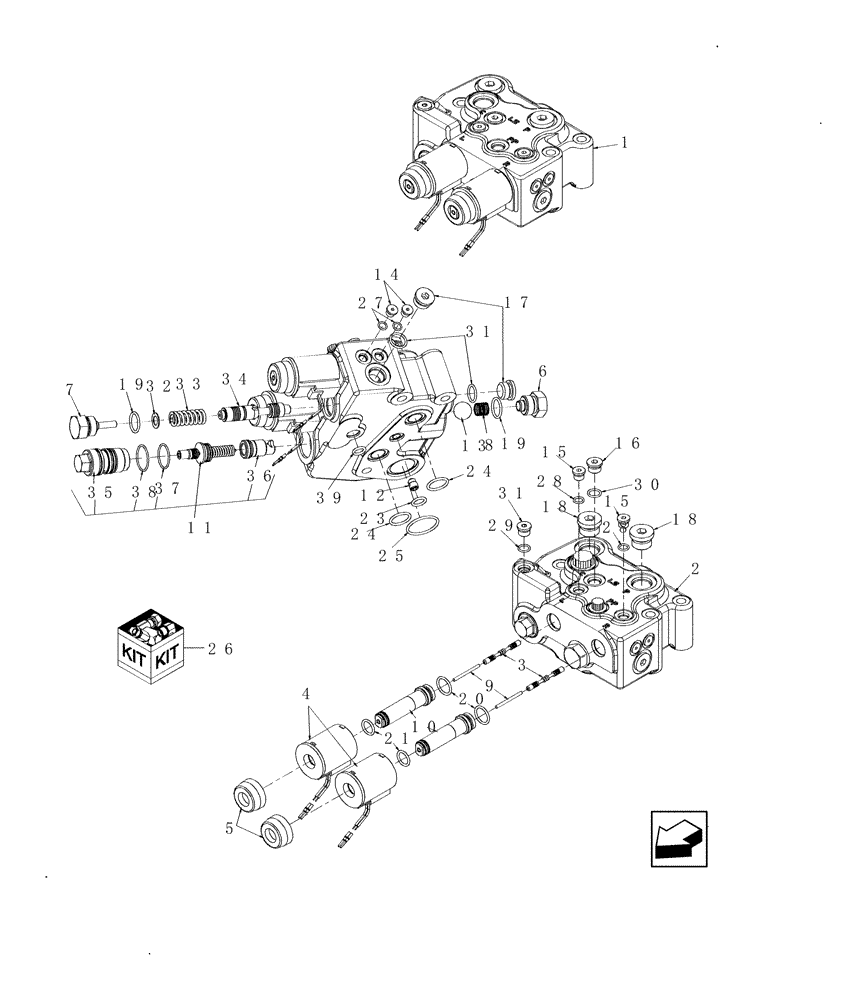

Запчасти Case IH 9010 (35.204.04) - VALVE, FEEDER / HEADER LIFT CONTROL (35) - HYDRAULIC SYSTEMS

1

87648197

CONTROL VALVE

1шт.

87648197R

REMAN-HYD VALVE

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08)

1шт.

87648197C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

188104A1

SPOOL

2шт.

4

188105A1

SOLENOID

2шт.

5

188106A1

NUT

2шт.

6

188107A1

PLUG

1шт.

7

188110A1

PLUG

1шт.

8

188114A1

SPRING

1шт.

9

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

10

188117A1

CARTRIDGE,72.25mm OAL

Feeder/Header Lift Control Valve

2шт.

11

87643252

KIT

Meter Out

1шт.

12

373758A1

VALVE

1шт.

13

511-10200

BALL,20mm Dia

1шт.

14

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

2шт.

16

9625178

PLUG,9/16" - 18 ORB

1шт.

17

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

18

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

21

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

22

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

23

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

24

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

25

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1шт.

26

243253A1

SEAL KIT

1шт.

27

NSS

NOT SOLD SEPARAT

2шт.

28

NSS

NOT SOLD SEPARAT

2шт.

29

NSS

NOT SOLD SEPARAT

1шт.

30

NSS

NOT SOLD SEPARAT

1шт.

31

NSS

NOT SOLD SEPARAT

1шт.

32

NSS

NOT SOLD SEPARAT

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

NSS

NOT SOLD SEPARAT

1шт.

35

NSS

NOT SOLD SEPARAT

1шт.

36

NSS

NOT SOLD SEPARAT

1шт.

37

NSS

NOT SOLD SEPARAT

1шт.

38

NSS

NOT SOLD SEPARAT

1шт.

39

NSS

NOT SOLD SEPARAT

1шт.
