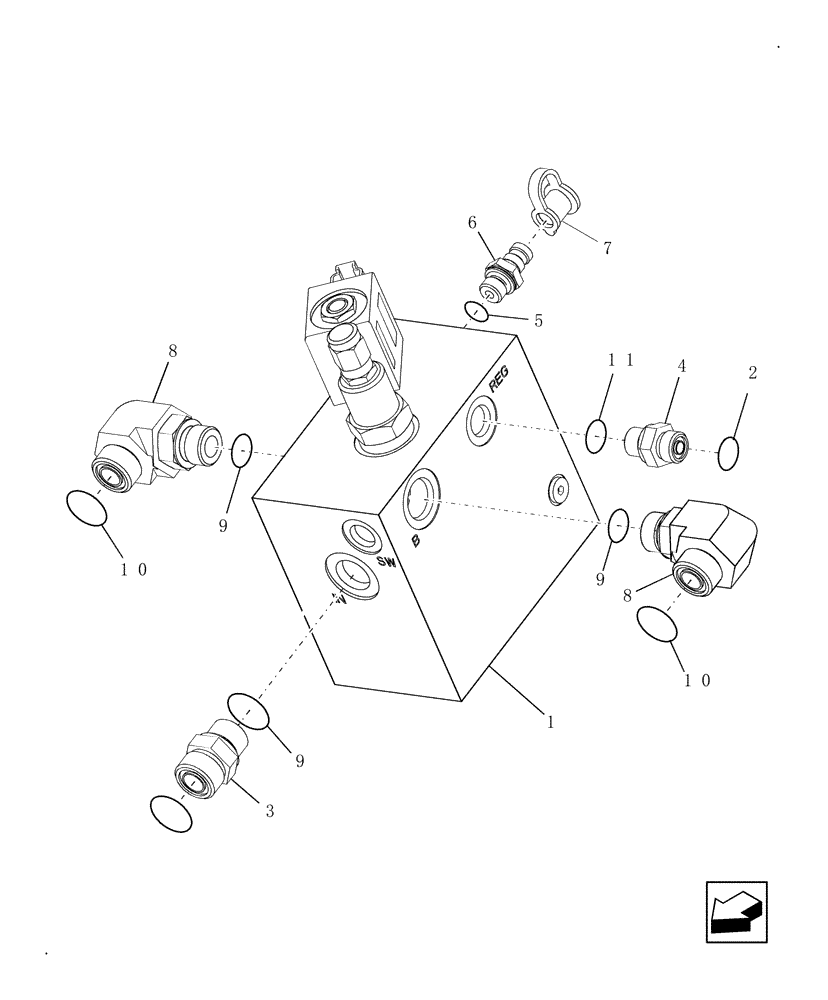

Запчасти Case IH 9010 (33.202.19[02]) - VALVE, HYDRAULIC, PARK - CONNECTORS; BTWN PIN HAJ202001 & PIN HAJ203150 - 7010/8010 (33) - BRAKES & CONTROLS

1

87673664

VALVE

Hydraulic

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Includes: Refs 9 & 10

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes: Refs 2 & 11

1шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

84320565

COUPLING,M14 x 1.5

Diagnostic; Includes: Ref 5

1шт.

7

86502604

DUST CAP

1шт.

8

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Includes: Refs 9 & 10

2шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.
