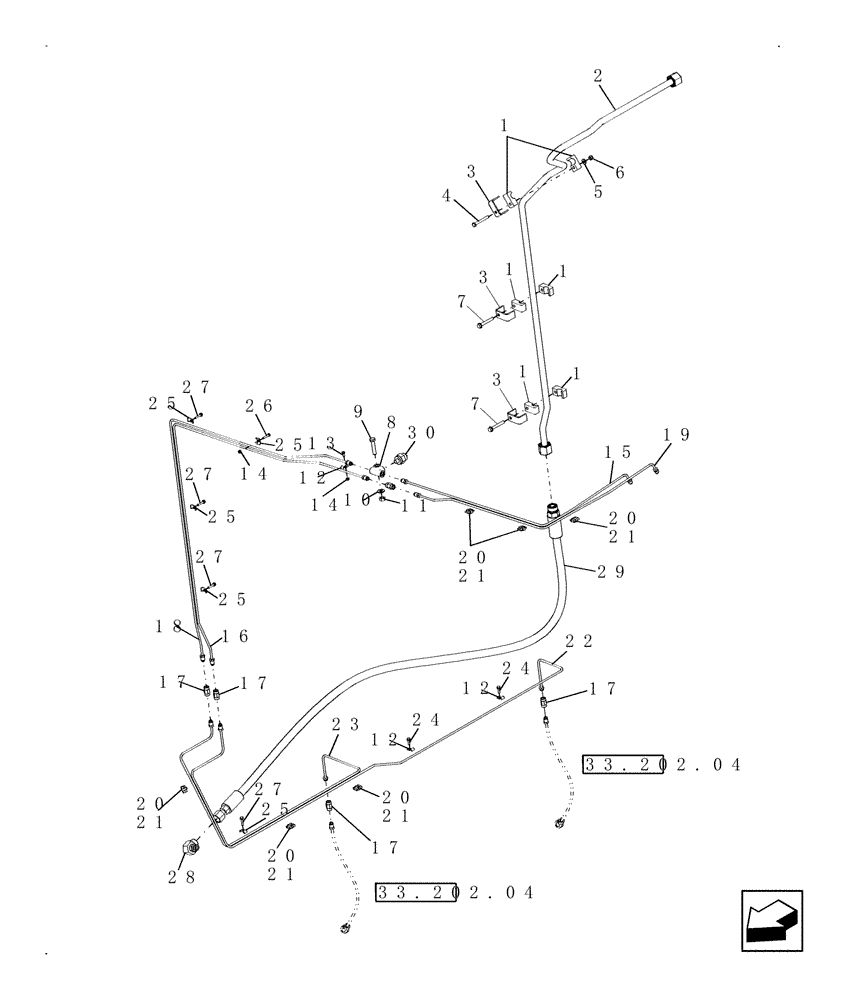

Запчасти Case IH 9010 (33.202.15) - HYDRAULICS - BRAKE CONTROL LINES - 9010 (33) - BRAKES & CONTROLS

1

433007

CLAMP

6шт.

2

87563488

HYD TUBE,0.625" OD

Park Brake Work

1шт.

3

433100

SUPPORT

3шт.

4

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

6

353308

NUT,M6 x 1.0, Cl 8

1шт.

7

87028761

SELF-TAP SCREW,6.3mm OD x 1.8 x 50mm

2шт.

8

9505391

TEE

1шт.

9

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

84814932

CLAMP,5mm ID, 4.8mm Bolt Hole, J Type

3шт.

13

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

1шт.

14

385681

NUT,M4 x 0.7, Cl 8

2шт.

15

87280703

TUBE,4.75 mm OD

Brake, Upper, Right

1шт.

16

87280706

TUBE,4.75 mm OD

Brake, Mid, Left

1шт.

17

84062540

HYD CONNECTOR

3шт.

18

87280705

TUBE,4.75 mm OD

Brake, Mid, Right

1шт.

19

87280704

TUBE,4.75 mm OD

Brake, Upper, Left

1шт.

20

87000394

CLIP,4.75mm ID x 17mm OAL x 6.9mm Thk

Tube

6шт.

21

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

22

87376959

TUBE,5.45mm OD

Brake, Lower, Left, PLN DR

1шт.

23

87376961

TUBE,455.78mm OAL

Brake, Lower, Right, PLN DR

1шт.

24

87024982

SELF-TAP SCREW,Flat Hd, M4.2 x 22mm

2шт.

25

84814933

CLAMP

5шт.

26

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

1шт.

27

86979018

SELF-TAP SCREW,Flat Hd, M4.2 x 22mm

4шт.

28

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

29

87280111

HOSE

Park Brake Supply

1шт.

30

354372

PRESSURE SWITCH

Brake Control Lines

1шт.
