(21.184.02[01]) - DIFFERENTIAL - 7010/8010

Запчасти Case IH 9010 (21.184.02[01]) - DIFFERENTIAL - 7010/8010 (21) - TRANSMISSION

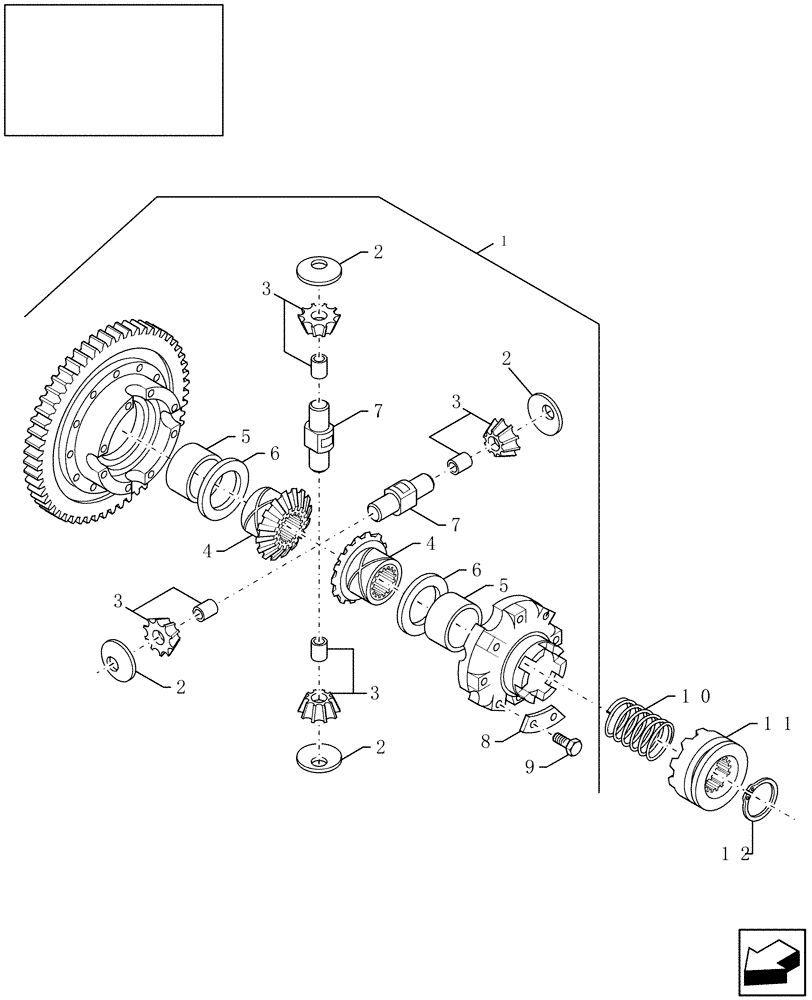

Схема запчастей Case IH 9010 - (21.184.02[01]) - DIFFERENTIAL - 7010/8010 (21) - TRANSMISSION
7
2
11
1
2
3
6
12
2
7
5
6
3
3
10
9
4
4
2
5
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84071411

DIFFERENTIAL

16/71, Std

1шт.

1

84071412

DIFFERENTIAL

20/61, Std

1шт.

1

84071437

DIFFERENTIAL

16/71, W/Lock

1шт.

1

84071415

DIFFERENTIAL

20/61, W/Lock

1шт.

2

80210014

WASHER

Dished

4шт.

3

89850394

GEAR

Pinion

4шт.

4

89514042

PLANETARY GEAR

2шт.

5

89514039

BUSHING

2шт.

6

80210013

THRUST WASHER

2шт.

7

89514041

SHAFT

Satellite

2шт.

8

80331649

LOCKING PLATE

4шт.

9

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

8шт.

10

80455097

SPRING

For Differential W/Lock

1шт.

11

80455094

RING

For Differential W/Lock

1шт.

12

327911

CIRCLIP,55mm ID

For Differential W/Lock

1шт.
