Запчасти Case IH 9010 (21.102.01) - FEEDER - GEARBOX ASSY (21) - TRANSMISSION

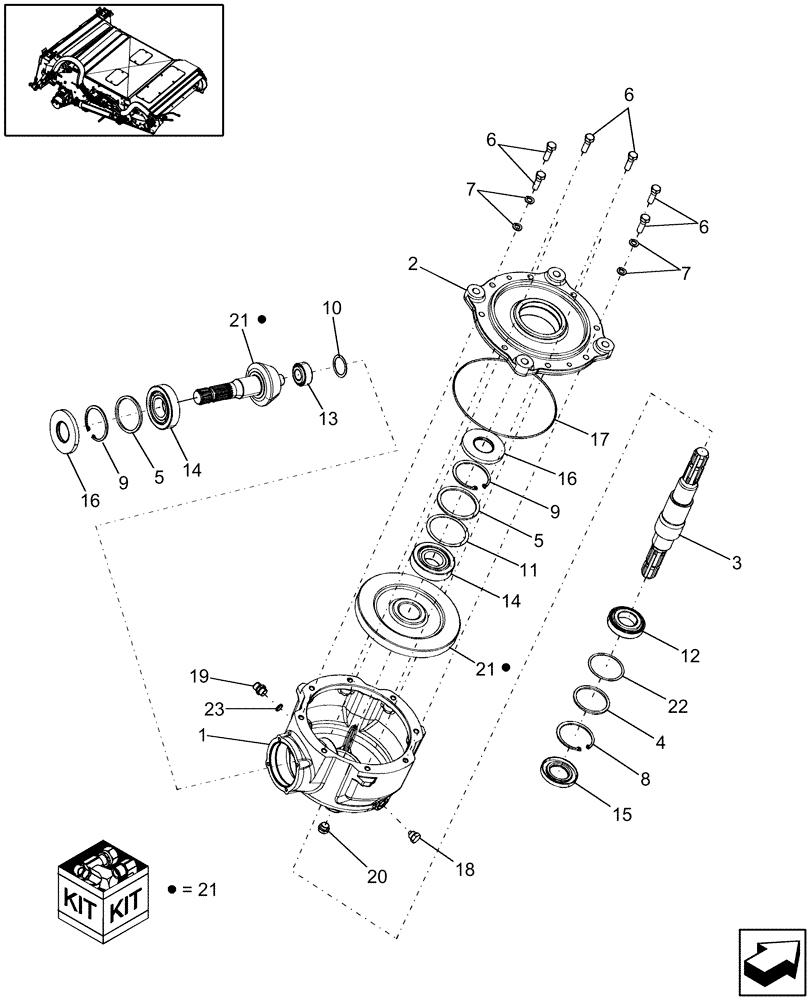

Схема запчастей Case IH 9010 - (21.102.01) - FEEDER - GEARBOX ASSY (21) - TRANSMISSION
6
16
1
10
21
18
13
6
2
14
6
11
14
9
8
7
5
4
23
5
12
7
19
15
3
9
21
20
22
16
17

Артикул

Название

Примечание

Количество

87610913

GEARBOX ASSY

1шт.

87610913R

REMAN-GEARBOX

7010, 8010 P.I.N. HAJ200001 Thru HAJ204999,

1шт.

87610913C

CORE-GEARBOX

Return Number

1шт.

1

87449554

HOUSING

1шт.

2

87449555

COVER

1шт.

3

87449556

SHAFT

1шт.

4

87449557

SPACER,74mm ID x 84.8mm OD x 4mm L

D.74 x 84, 8 x 4

1шт.

5

87449558

SPACER,85.2mm ID x 99.8mm OD x 4mm L

D.85, 2 x 99, 8 x 4

2шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

7

892-11012

LOCK WASHER,M12

8шт.

8

800-2185

SNAP RING,M85 x 3, Int

1шт.

9

800-21100

SNAP RING,Int, M100 x 3

2шт.

10

87449559

SHIM KIT

1шт.

11

87449569

SHIM KIT

2шт.

12

86018152

BEARING ASSY,45mm ID x 85mm OD x 20.75mm W

1шт.

13

81864433

BEARING ASSY,24.99mm ID x 52mm OD x 22.2mm W

1шт.

14

87449570

BEARING ASSY,45mm ID x 100mm OD x 27.25mm W

2шт.

15

87610910

OIL SEAL,45mm ID x 85mm OD x 10mm Thk

Viton, M45 x 89 x 10

1шт.

16

87610911

OIL SEAL,45mm ID x 100mm OD x 10mm Thk

Viton, M45 x 100 x 10

1шт.

17

238-5271

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

(M234.5 ID x 3.53 Thk), 4925

1шт.

18

87282043

MAGNETIC PLUG

Drain, M18 x 1.5

1шт.

19

87282044

PLUG,M18 x 1.5, 28mm L

Breather Plug, M18 x 1.5

1шт.

20

87282045

SIGHTGLASS

Level, M18 x 1.5

1шт.

21

87449573

BEVEL GEAR

Kit

1шт.

22

87449564

SHIM KIT

1шт.

23

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 26
