Запчасти Case IH 9010 (10.408.06) - KIT, COOL OIL BYPASS - HYDRO DRIVE - 9010 (10) - ENGINE

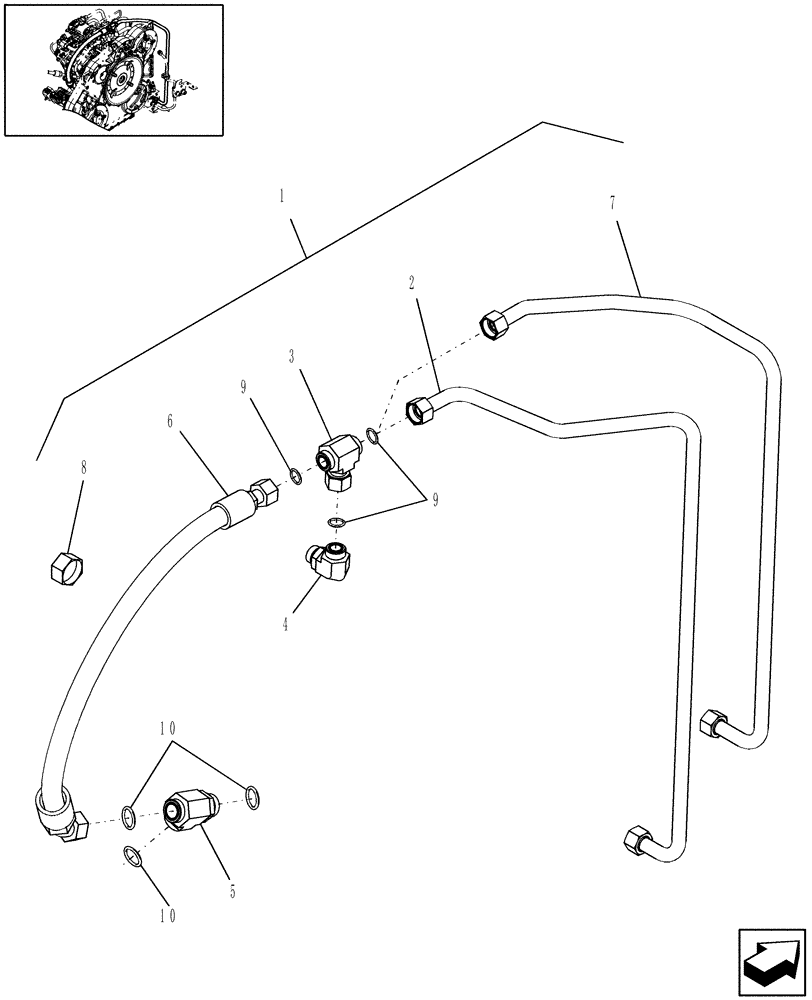

Схема запчастей Case IH 9010 - (10.408.06) - KIT, COOL OIL BYPASS - HYDRO DRIVE - 9010 (10) - ENGINE

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

Cool Oil Bypass

1шт.

2

87670639

HYD TUBE,1" OD

PTO Regulator Valve Bypass

1шт.

PIN HAJ202001 & After

1шт.

3

87301769

TEE,1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw Br

Incl Ref 9

1шт.

4

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

1шт.

PIN HAJ202001 & After

1шт.

5

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

Incl Ref 10

1шт.

Not Required PIN HAJ200282 & After

1шт.

6

87283739

HOSE

Return Manifold Bypass

1шт.

7

87283740

HYD TUBE

Regulator Valve Bypass

1шт.

8

9847691

CAP

1шт.

Not Required Prior To PIN HAJ200282

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

Выбрано товаров: 14
