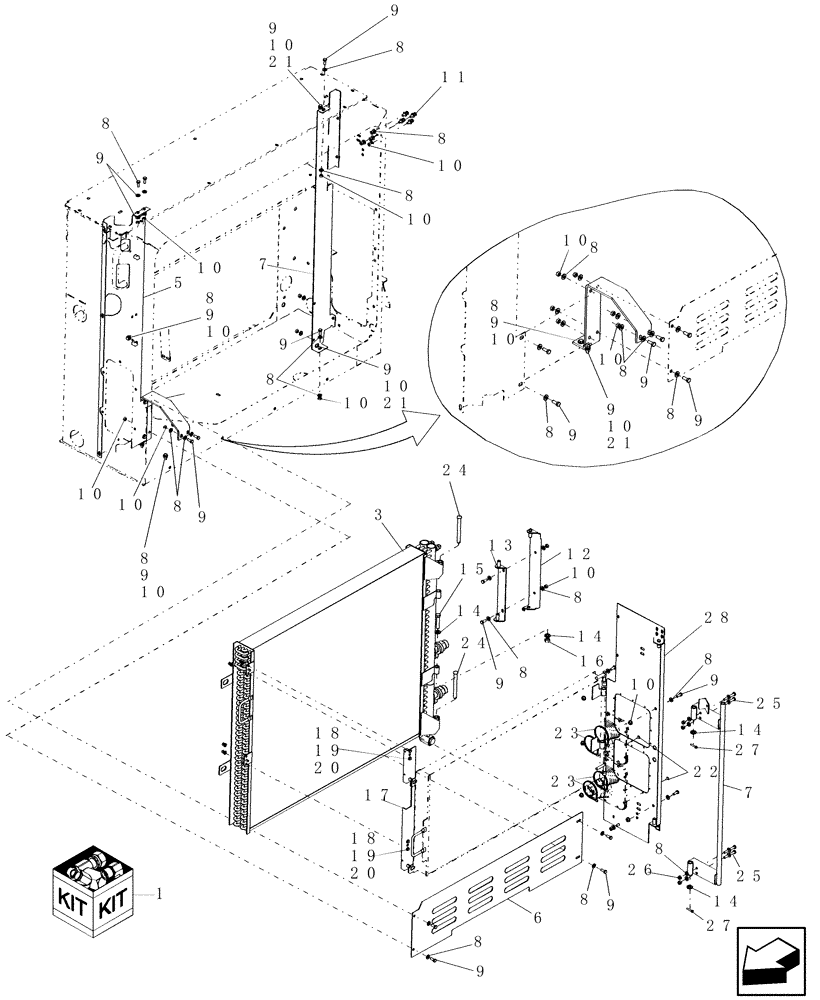

Запчасти Case IH 9010 (10.408.05) - KIT, OIL COOLER - 8010 (10) - ENGINE

1

87627812

PACKAGE,SERVICE

Kit, Oil Cooler; Incl Refs 2 Thru 28

1шт.

2

87625984

HINGE

1шт.

3

87106640

COOLER, OIL

1шт.

4

87626162

BRACKET

1шт.

5

87625988

PANEL ASSY.

1шт.

6

87106737

PANEL

1шт.

7

87626160

PANEL

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

62шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

26шт.

10

9706690

NUT,M8 x 1.25, Cl 8

30шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

87630960

SUPPORT ASSY.

1шт.

13

87630963

BRACKET

Condensor

1шт.

14

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

15

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

16

9706685

NUT,M12 x 1.75, Cl 8

1шт.

17

87630957

PLATE ASSY.

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

19

9706755

NUT,M6, Cl 8

4шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

22

87107418

FASTENER

24шт.

23

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

24

87019656

HEADED PIN,1/2" OD x 5" L

2шт.

25

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

27

394818

COTTER PIN,M5 x 25

2шт.

28

87625981

PANEL ASSY.

1шт.
