Запчасти Case IH 9010 (10.406.08[03]) - FAN SHROUD - 9010 (10) - ENGINE

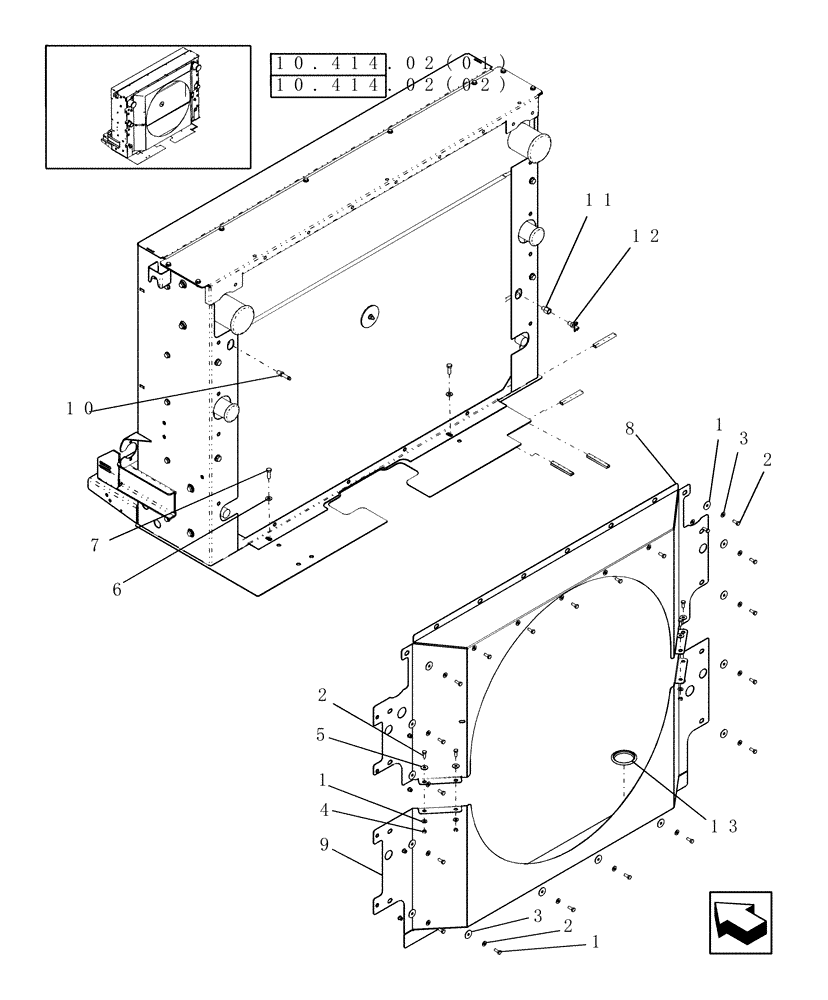

Схема запчастей Case IH 9010 - (10.406.08[03]) - FAN SHROUD - 9010 (10) - ENGINE
10
10.414.02(02)
10.414.02(01)
4
2
2
1
13
3
5
8
1
11
12
7
2
3
9
1
6

Артикул

Название

Примечание

Количество

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

3

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

10шт.

4

9706690

NUT,M8 x 1.25, Cl 8

4шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

87720397

SHROUD

Shroud, Top Fan

1шт.

9

87720393

SHROUD

Shroud, Bottom Fan

1шт.

10

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

3/8" Hose X 1/4" NPTF Beaded

1шт.

11

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

12

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

Выбрано товаров: 12
