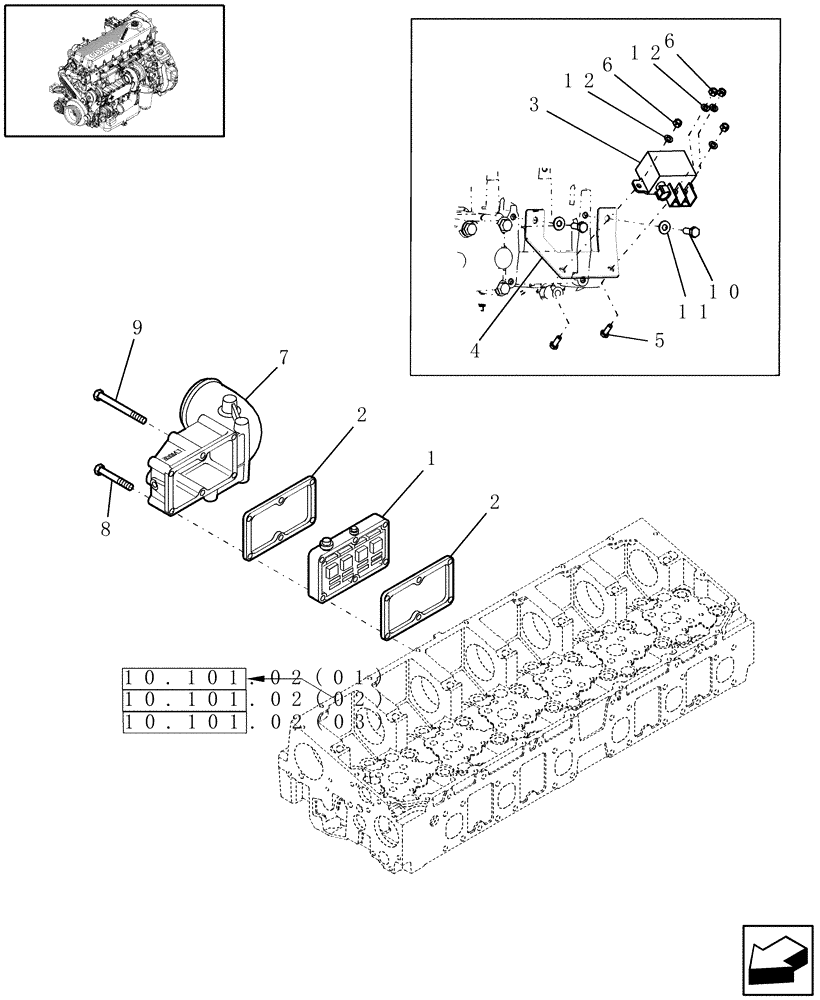

Запчасти Case IH 9010 (10.254.01[01]) - INTAKE MANIFOLD & HEATER - 7010 (10) - ENGINE

1

504041252

RESISTOR

1шт.

2

504026624

GASKET

2шт.

3

86619908

RELAY,12V, 150A

1шт.

4

87582545

BRACKET

1шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

6

353308

NUT,M6 x 1.0, Cl 8

4шт.

7

504218906

PIPE

Manifold

1шт.

8

16593125

BOLT,M10 x 100mm

M10 x 100

2шт.

9

16599225

SCREW,M10 x 140mm

M10 x 140

4шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
