Запчасти Case IH 9010 (10.246.03[04]) - FUEL SYSTEM - 9010 (10) - ENGINE

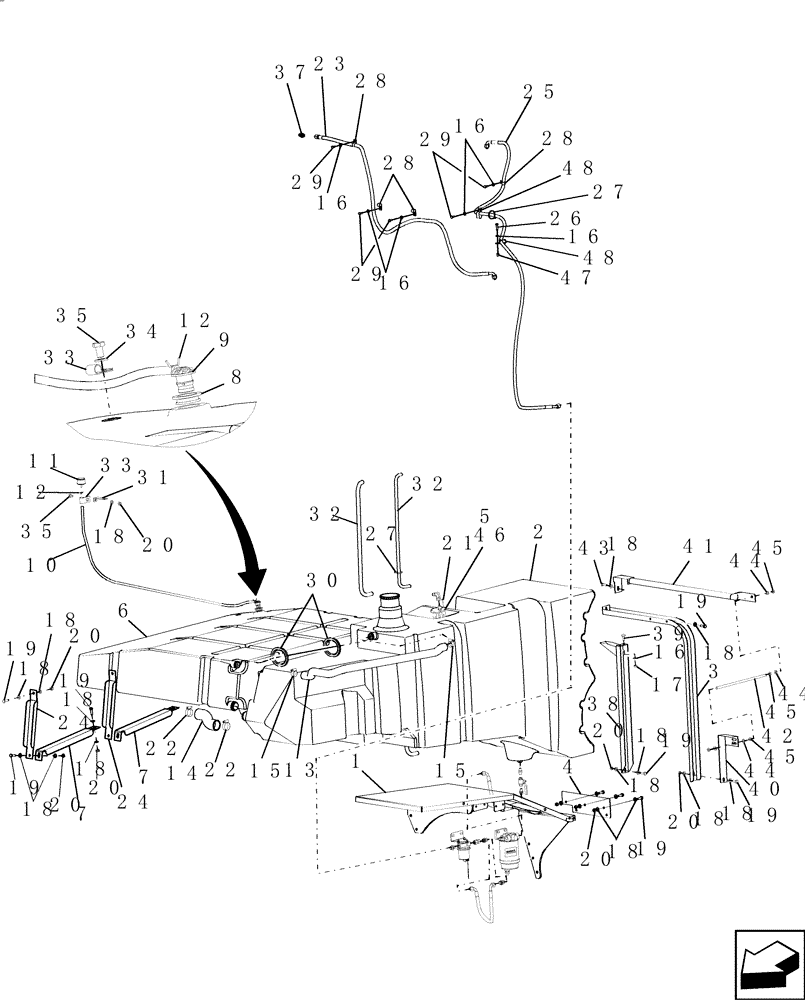

Схема запчастей Case IH 9010 - (10.246.03[04]) - FUEL SYSTEM - 9010 (10) - ENGINE
45
38
46
29
18
1
18
20
37
21
20
18
35
17
11
19
23
19
43
27
9
24
48
18
16
15
20
28
34
41
39
18
33
27
22
19
13
29
16
35
20
44
20
42
24
18
44
32
20
45
7
45
28
10
18
47
32
18
40
12
15
19
16
22
14
26
6
18
16
28
30
7
25
16
5
19
2
8
29
20
18
48
18
31
44
33
18
12
3
19
19
4
18

Артикул

Название

Примечание

Количество

1

87510788

SUPPORT ASSY.

1шт.

2

87351468

FUEL TANK

1шт.

3

87608408

STRAP

1шт.

4

87646008

PLATE

Stop

1шт.

5

87392122

SENDER UNIT

Incl Ref 46 - Gasket

1шт.

6

86998004

FUEL TANK

Auxiliary

1шт.

7

87584443

SUPPORT

2шт.

8

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

1шт.

9

86999948

SAFETY VALVE

1шт.

10

PL

PROCURE LOCALLY

HOSE, Breather

1шт.

11

86999949

FUEL FILTER

Air

1шт.

12

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

13

87000616

HOSE,38.10 mm ID x 675.00 mm, SAE 30R6 / SAE 30R7

Between Fuel Tanks

1шт.

14

87000615

HOSE,50.81 mm ID x 162.80 mm, SAE 30R6/SAE 30R7

Between Fuel Tanks

1шт.

15

86634186

HOSE CLAMP,32mm - 54mm

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

27шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

13шт.

20

100016

NUT,M10 x 1.5, Cl 8

13шт.

21

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Pan Hd, M5 x 16

6шт.

22

86625019

HOSE CLAMP,44mm - 67mm

2шт.

23

87314674

HOSE,10mm ID x 2381mm L, SAE 100R6

Fuel Return; L = 2381mm

1шт.

24

87584444

SUPPORT

2шт.

25

86975310

HOSE,10mm ID x 3100mm L, SAE 100R6

Engine Fuel Supply; L = 3100mm

1шт.

26

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

27

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

28

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

5шт.

30

NS

NOT SERVICED

PROTECTION Edge - 290mm Length

2шт.

31

87280946

BRACKET

1шт.

32

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

35

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

36

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

Not Shown

1шт.

37

84431916

FITTING

1шт.

38

87107355

STRAP

1шт.

39

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

87510668

BRACKET

1шт.

41

87369684

SUPPORT

1шт.

42

87390420

ROD

Tie

1шт.

43

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

1шт.

44

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

45

9706685

NUT,M12 x 1.75, Cl 8

4шт.

46

9832364

SEAL

Fuel Gauge

1шт.

47

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

48

620019

CLAMP

2шт.

Выбрано товаров: 51
