Запчасти Case IH 9010 (10.246.03[03]) - FUEL SYSTEM - 8010 (10) - ENGINE

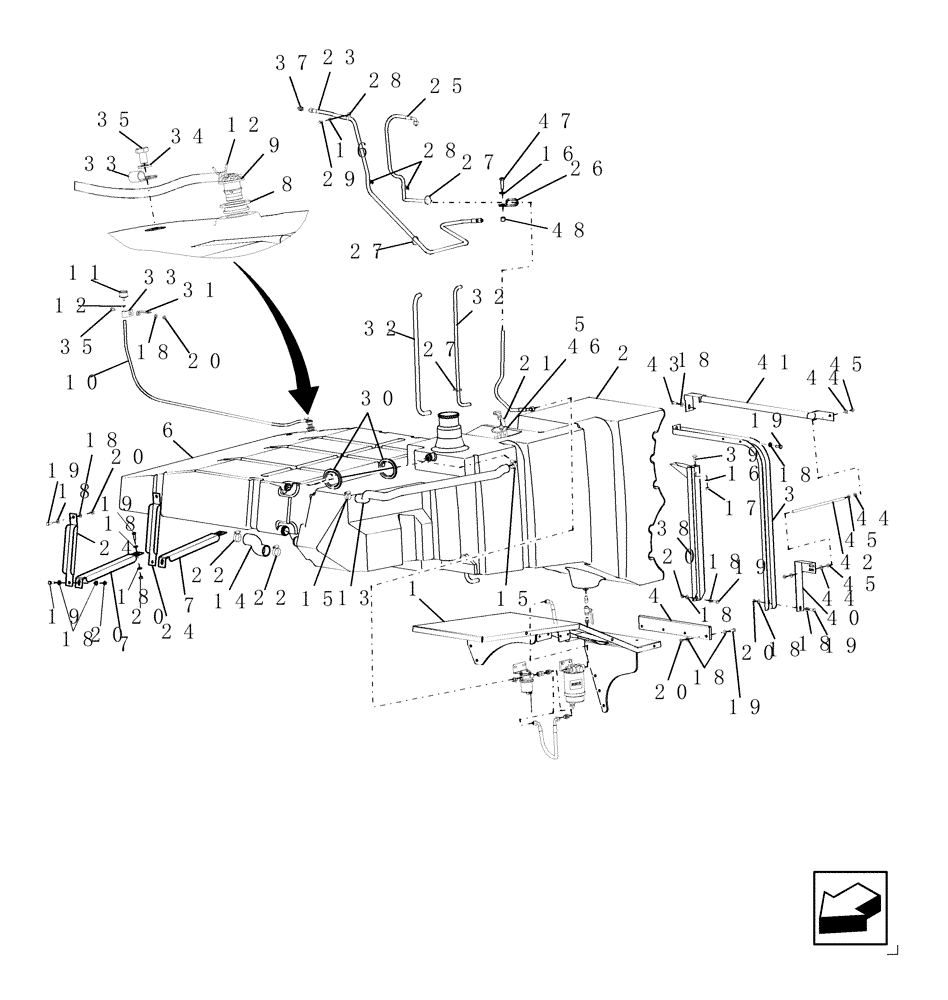

Схема запчастей Case IH 9010 - (10.246.03[03]) - FUEL SYSTEM - 8010 (10) - ENGINE
18
11
18
33
18
12
18
28
15
38
20
21
28
12
44
15
19
30
18
20
27
22
18
19
45
24
45
10
40
13
46
1
14
19
22
18
47
19
27
2
18
42
18
7
48
20
6
20
9
45
32
20
7
37
17
31
41
44
16
8
29
35
18
23
16
19
18
18
25
3
19
26
19
18
4
32
35
5
34
16
39
33
44
27
43
20
24
20

Артикул

Название

Примечание

Количество

1

87510788

SUPPORT ASSY.

1шт.

2

87351468

FUEL TANK

1шт.

3

87608408

STRAP

1шт.

4

87282297

PLATE

Stop (3 Bolt Holes)

1шт.

Shown

1шт.

Prior To PIN HAJ202001

1шт.

4

87646008

PLATE

Stop (5 Bolt Holes)

1шт.

Not Shown

1шт.

PIN HAJ202001 & After

1шт.

5

87392122

SENDER UNIT

Incl Ref 46 - Gasket

1шт.

6

86998004

FUEL TANK

Auxiliary

1шт.

7

87584443

SUPPORT

2шт.

8

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

1шт.

9

86999948

SAFETY VALVE

1шт.

10

PL

PROCURE LOCALLY

HOSE, Breather

1шт.

11

86999949

FUEL FILTER

Fuel

1шт.

12

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

13

87000616

HOSE,38.10 mm ID x 675.00 mm, SAE 30R6 / SAE 30R7

Between Fuel Tanks

1шт.

14

87000615

HOSE,50.81 mm ID x 162.80 mm, SAE 30R6/SAE 30R7

Between Fuel Tanks

1шт.

15

86634186

HOSE CLAMP,32mm - 54mm

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

27шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

13шт.

20

100016

NUT,M10 x 1.5, Cl 8

13шт.

21

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Pan Hd, M5 x 16

6шт.

22

86625019

HOSE CLAMP,44mm - 67mm

2шт.

23

87314674

HOSE,10mm ID x 2381mm L, SAE 100R6

Fuel Return; L = 2381mm

1шт.

24

87584444

SUPPORT

2шт.

25

86975310

HOSE,10mm ID x 3100mm L, SAE 100R6

Fuel Supply, L = 3100mm

1шт.

26

Reference Not Used

1шт.

27

86566989

CABLE TIE,208mm L

CABLE STRAP

8шт.

28

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

30

NS

NOT SERVICED

PROTECTION Edge - 290mm Length

2шт.

31

87280946

BRACKET

1шт.

32

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

35

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

36

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

Not Shown

1шт.

37

84431916

FITTING

1шт.

38

87107355

STRAP

1шт.

39

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

87510668

BRACKET

1шт.

41

87369684

SUPPORT

1шт.

42

87390420

ROD

Tie

1шт.

43

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

1шт.

44

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

45

9706685

NUT,M12 x 1.75, Cl 8

4шт.

46

9832364

SEAL

Fuel Gauge

1шт.

Выбрано товаров: 54
