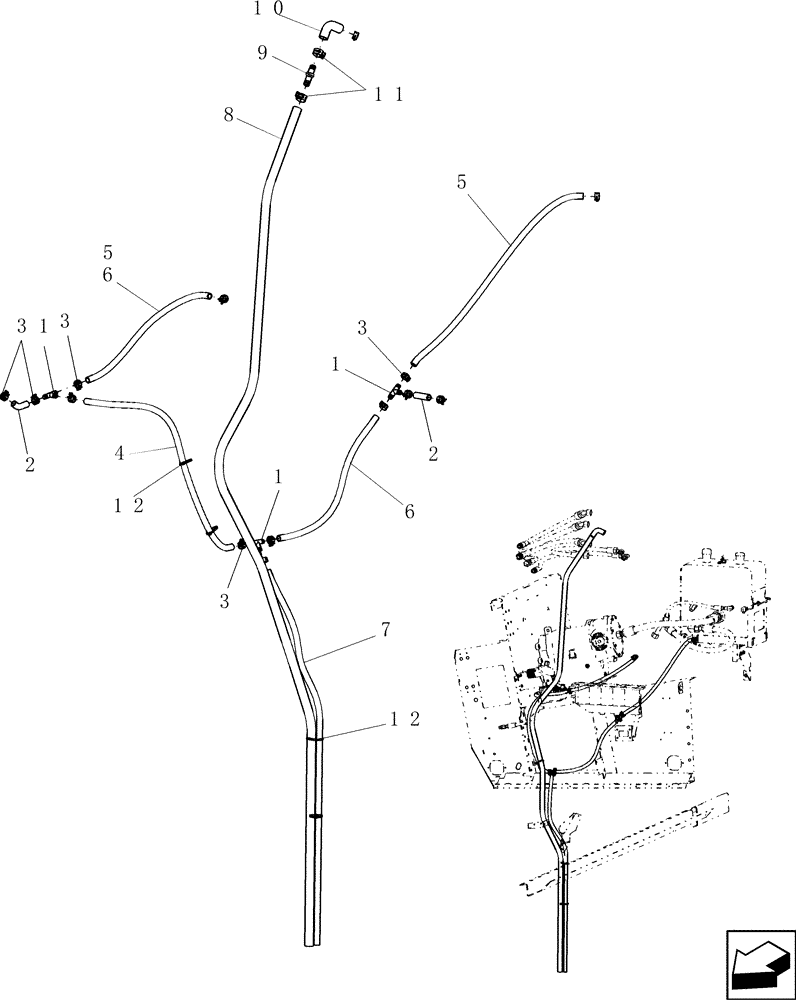

Запчасти Case IH 9010 (10.102.07[01]) - OIL DRAIN LINES - 7010/8010 (10) - ENGINE

1

87107102

TEE,5/8" Barb

3шт.

2

1977295C1

TUBE

75mm; From Valves on Rotor Gearbox and PTO Gearbox Oil Pan

2шт.

Order Per Foot, As Needed

1шт.

3

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

13шт.

4

1977295C1

TUBE

Drain, 1150mm

1шт.

Order Per Foot, As Needed

1шт.

5

1977295C1

TUBE

Drain, 940mm - From Valve on Hydraulic Oil Reservoir

1шт.

Order Per Foot, As Needed

1шт.

6

1977295C1

TUBE

Drain, 710mm - (1) From Valve on Engine Oil Pan

2шт.

Order Per Foot, As Needed

1шт.

7

1977295C1

TUBE

Drain, 1500mm

1шт.

Order Per Foot, As Needed

1шт.

8

87107435

HOSE,25.40 mm ID x 3350 mm

Drain; 900 mm

1шт.

Order Per Foot, As Needed

1шт.

9

87107557

FITTING

1шт.

8010 Only

1шт.

10

84334134

HOSE,25mm ID x 69mm OAL

Elbow, From Breather Port on Engine

1шт.

8010 Only

1шт.

11

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.
