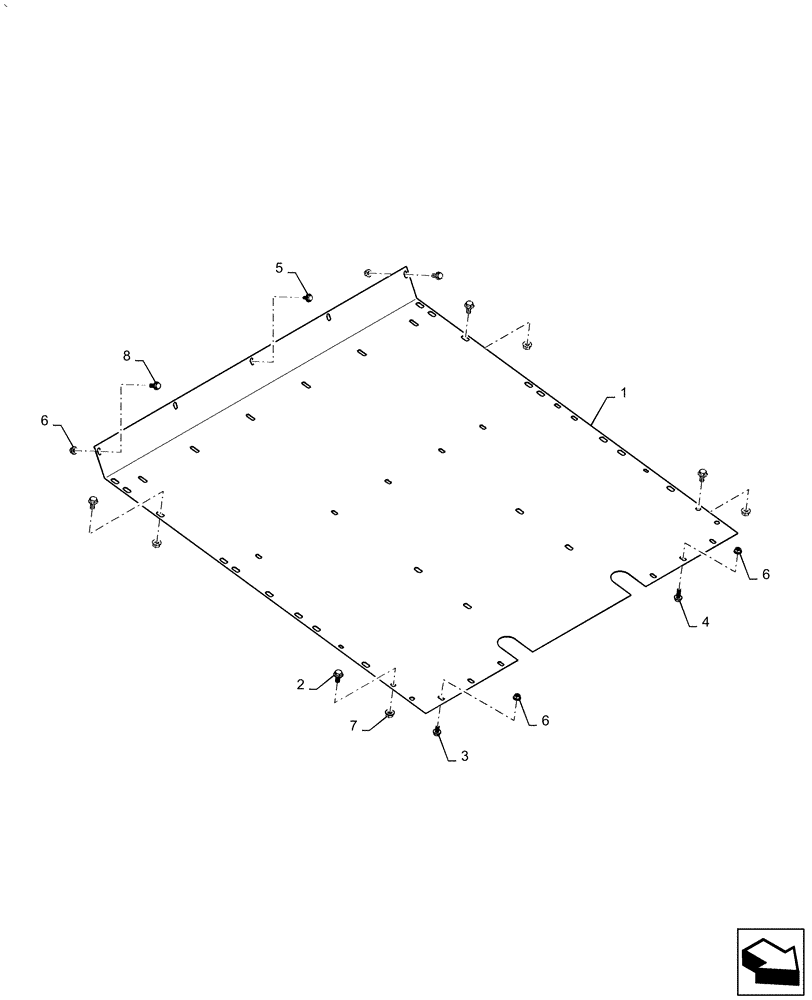

Запчасти Case IH AF4088 (90.105.CA[03]) - SHEET ASSY, ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47553393

Engine Deck

SHEET

1шт.

2

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.

3

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

4

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

5

87673845

SELF-TAP SCREW,M8 x 1.25 x 25mm

3шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.
