Запчасти Case IH AF4088 (90.105.CA[01]) - ENGINE SHIELD, SERVICE DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

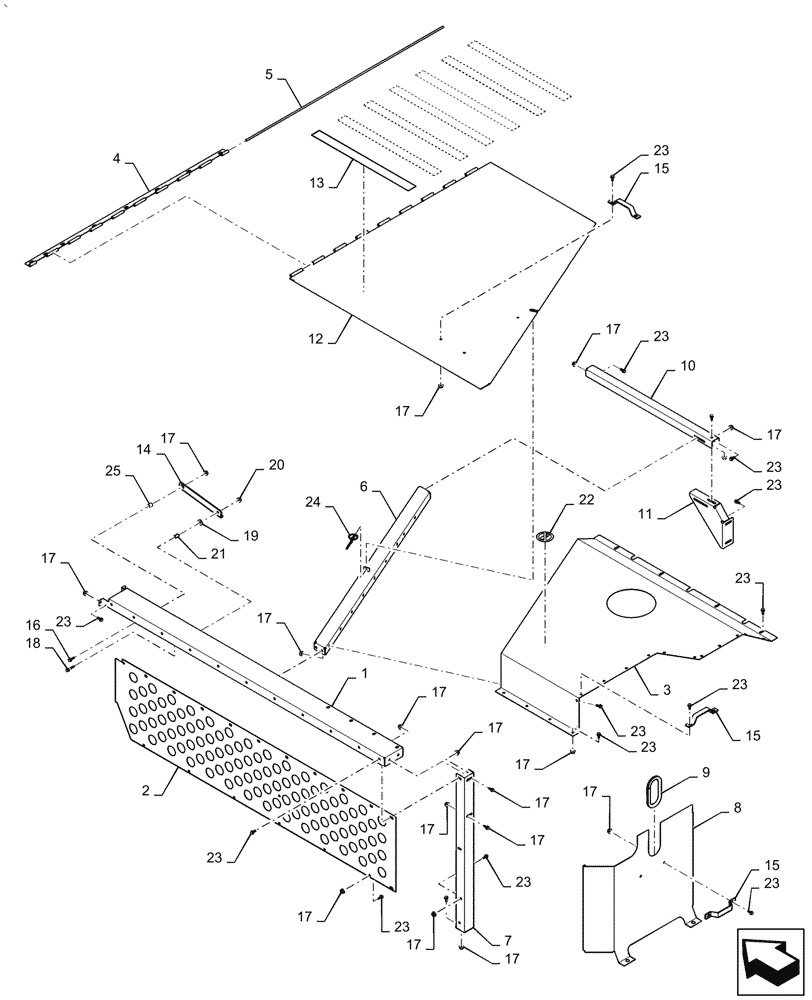

Схема запчастей Case IH AF4088 - (90.105.CA[01]) - ENGINE SHIELD, SERVICE DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
7
23
2
17
17
21
23
10
23
24
23
23
11
17
23
17
14
22
17
4
8
17
9
23
17
23
13
18
17
23
17
15
17
23
1
23
17
15
6
15
3
5
23
17
23
17
17
17
16
25
19
12
17

Артикул

Название

Примечание

Количество

1

47464297

Hood

SUPPORT

1шт.

2

47464348

Engine Compartment

SHEET

1шт.

3

47747158

Engine

COVER

1шт.

4

47464318

Rotor Door

HINGE

1шт.

5

47464319

Rotor Door Hinge

PIN

1шт.

6

47464333

Engine Cover

SUPPORT

1шт.

7

47464320

Service Deck, Rear, Use for 2015

SUPPORT

1шт.

7

47747160

Service Deck, Rear, Use from 2016

SUPPORT

1шт.

8

47464343

Weld Assy, Engine, Use for 2015

SHIELD

1шт.

8

47747151

Weld Assy, Engine, Use from 2016

SHIELD

1шт.

9

87063C3

SEAL

Trim

1шт.

10

47464335

Rotor Cover

SUPPORT

1шт.

11

47464331

Rotor Cover

SUPPORT

1шт.

12

47464314

Weld Assy, Rotor Compensator

COVER

1шт.

13

401502

ANTI-SKID STRIP

7шт.

14

47464301

Bracket, Rotor Door, Use for 2015

SUPPORT

1шт.

14

47747162

Bracket, Rotor Door, Use from 2016

BRACKET

1шт.

15

47464322

Door

HANDLE

3шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

Use for 2015

1шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use for 2015

55шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2016

52шт.

18

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange

1шт.

19

140041

WASHER,M8 x 28mm OD x 3mm Thk

Use for 2015

2шт.

19

140041

WASHER,M8 x 28mm OD x 3mm Thk

Use from 2016

1шт.

20

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque, Use for 2015

1шт.

21

87392240

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

1шт.

22

84432904

DECAL

1шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

73шт.

24

87106279

PIN,6.4mm OD

2шт.

25

87281729

BUSHING

1шт.

Выбрано товаров: 30
