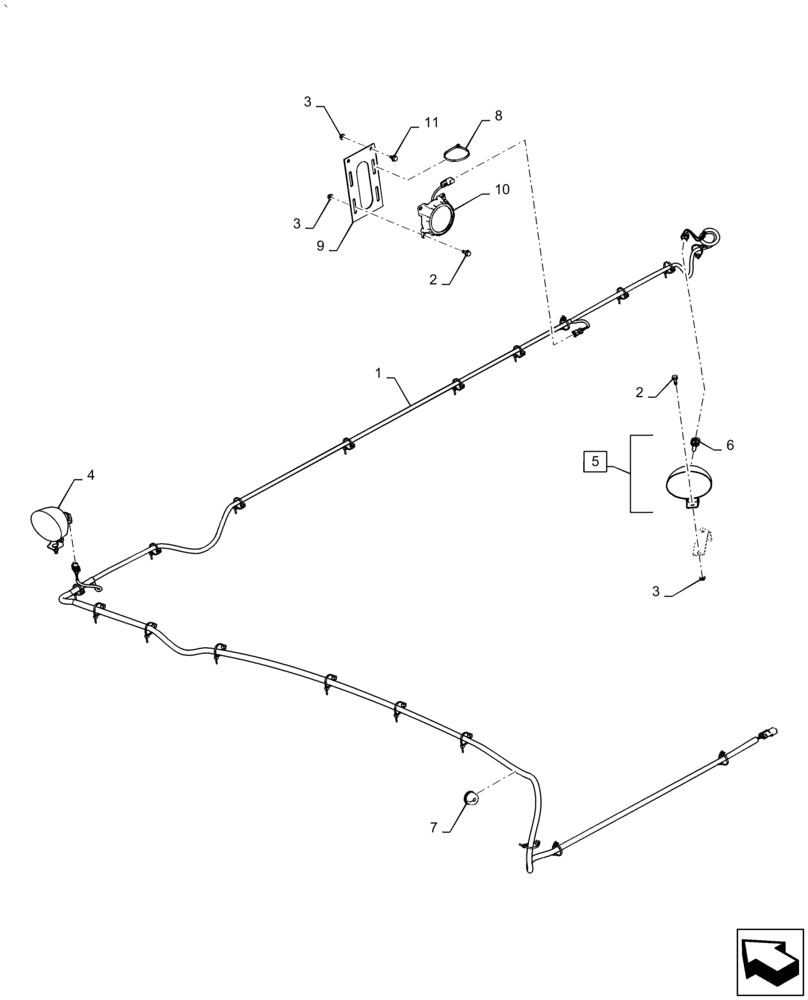

Запчасти Case IH AF4088 (55.404.CN[01]) - HARNESS, SERVICE, LIGHT, GRAIN TANK (55) - ELECTRICAL SYSTEMS

1

47661540

Harness Wire

WIRE HARNESS

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

5шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

4

87284332

WORK LAMP,Halogen, 12V, 50W, Clear

1шт.

5

87329757

LAMP,Halogen, 12V, 16W, Clear

Assy, Incl 6

1шт.

6

87329813

BULB,Halogen, 12.8V, 16W

12.8 V - 16 W

1шт.

7

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

9

47464298

Bracket, Grain Tank Sensor

SUPPORT

1шт.

10

84545938

SENSOR

Grain Tank

1шт.

11

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

2шт.
