Запчасти Case IH AF4088 (55.101.AC[01]) - LEFT SIDE, HARNESS, CHASSIS, USE FOR 2016 (55) - ELECTRICAL SYSTEMS

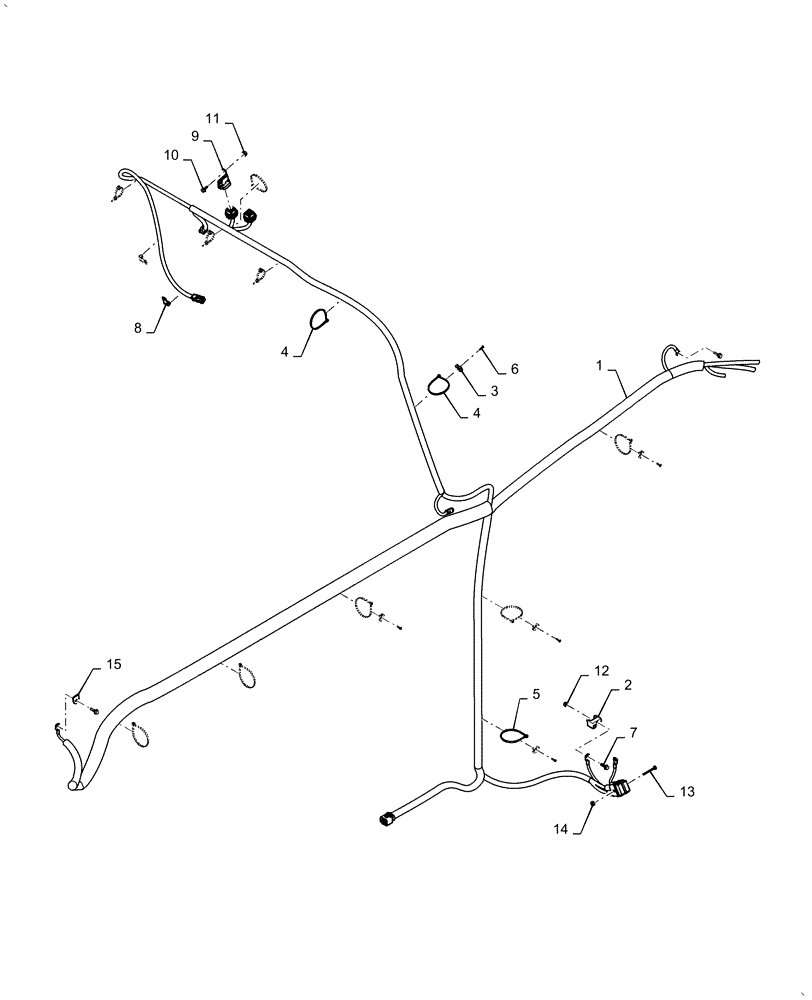

Схема запчастей Case IH AF4088 - (55.101.AC[01]) - LEFT SIDE, HARNESS, CHASSIS, USE FOR 2016 (55) - ELECTRICAL SYSTEMS
4
2
12
9
11
5
8
15
7
10
13
6
1
4
14
3

Артикул

Название

Примечание

Количество

1

47745278

Beacon, LH Chassis

WIRE HARNESS

1шт.

2

47582709

For Axial With Metal Bush

MOUNT

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

14шт.

4

86566990

CABLE TIE,292mm OAL x 4.8mm W

Nylon

18шт.

5

529070

CABLE TIE,368.3mm L

Nylon

1шт.

6

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

14шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

8

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

2шт.

9

86508603

RELAY,12V

Sealed Skirt With Bracket

2шт.

10

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

86050228

SCREW,Phil Pan Hd, M4 x 60mm, Cl 4.8

2шт.

14

86509264

NUT,M4, Cl 10

2шт.

15

84341718

CABLE

Strap, Ground

1шт.

Выбрано товаров: 15
