(55.047.AB[02]) - HARNESS, STEERING COLUMN, HEATER, AIR CONDITIONED

Запчасти Case IH AF4088 (55.047.AB[02]) - HARNESS, STEERING COLUMN, HEATER, AIR CONDITIONED (55) - ELECTRICAL SYSTEMS

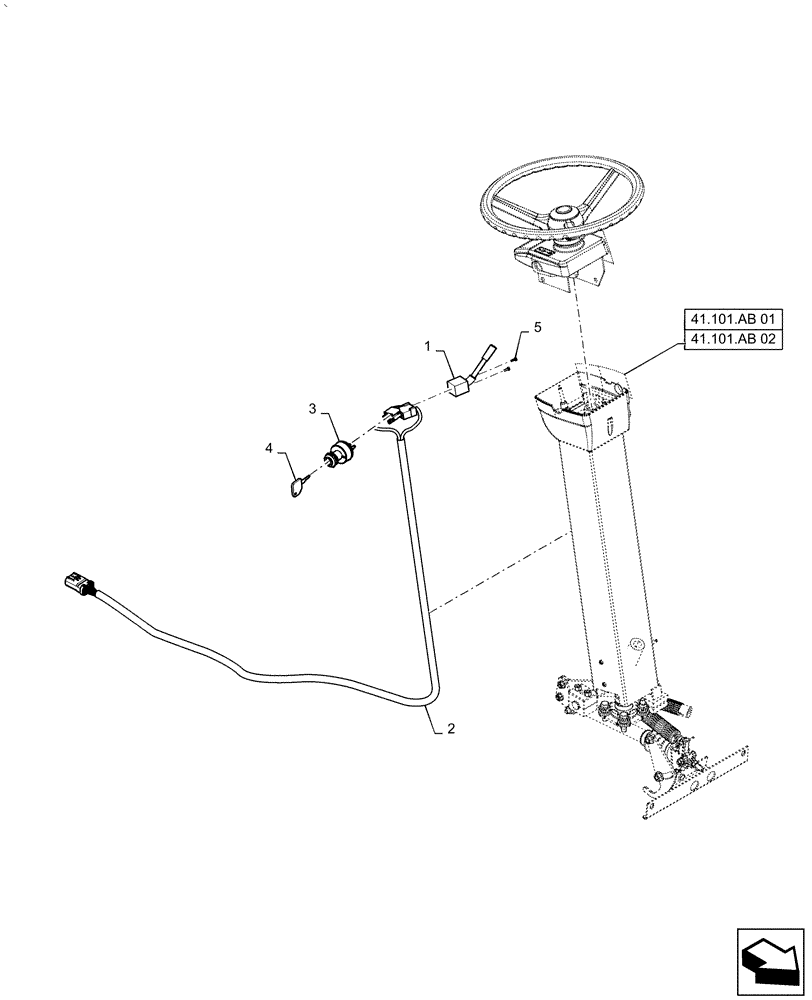

Схема запчастей Case IH AF4088 - (55.047.AB[02]) - HARNESS, STEERING COLUMN, HEATER, AIR CONDITIONED (55) - ELECTRICAL SYSTEMS
41.101.ab 02
2
41.101.ab 01
4
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1500137C2

FLASHER SWITCH

Toggle Assy, Worn - Dip - Horn

1шт.

2

47497104

Steering Column

WIRE HARNESS

1шт.

3

87281750

IGNITION SWITCH

Start

1шт.

4

47457834

IGNITION KEY

Start

1шт.

5

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 5
