Запчасти Case IH AF4088 (21.114.AL[01]) - TRANSMISSION HOUSING, DIFFERENTIAL (21) - TRANSMISSION

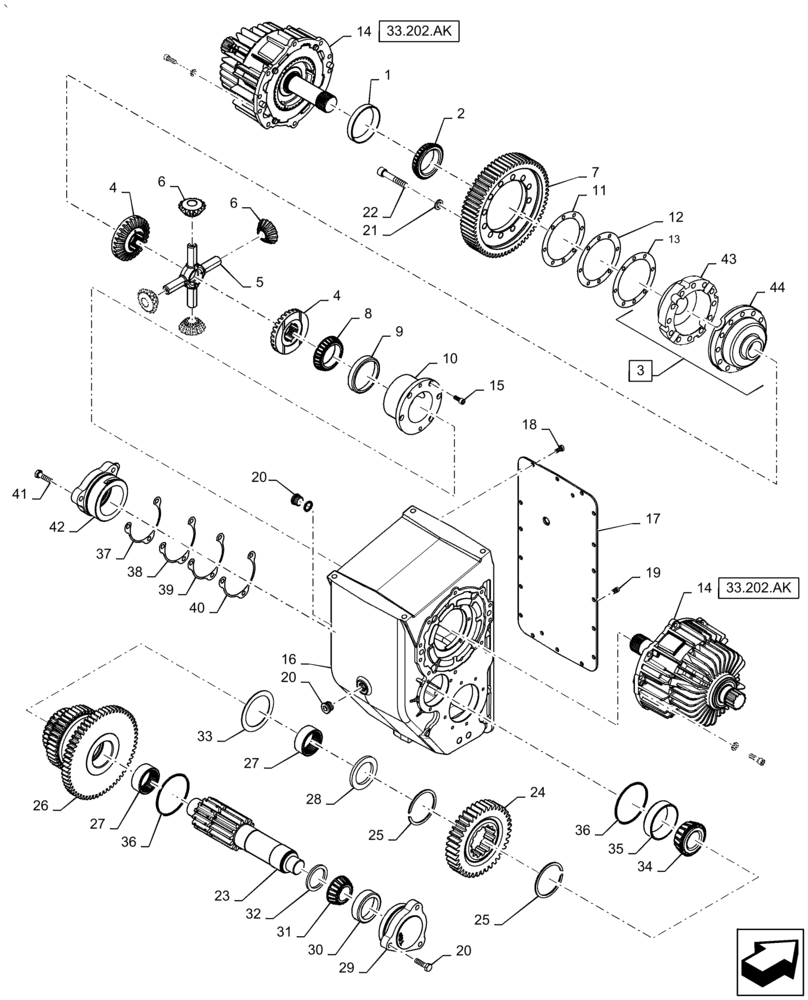

Схема запчастей Case IH AF4088 - (21.114.AL[01]) - TRANSMISSION HOUSING, DIFFERENTIAL (21) - TRANSMISSION
20
33
27
7
4
20
14
12
1
9
32
40
27
31
38
36
39
41
5
15
36
42
29
26
19
25
34
22
44
33.202.ak
35
17
3
20
23
13
21
10
6
4
11
2
33.202.ak
37
8
14
24
28
43
18
6
30
16
25

Артикул

Название

Примечание

Количество

1

379858R1

BEARING CUP

Differential, RH

1шт.

2

383741R91

NO LONGER SERVICED

Bearing Assy Differential, RH

1шт.

3

84387640

HOUSING

Differential, Incl 43, 44

1шт.

4

236377A1

BEVEL GEAR

28 Tooth

2шт.

5

393637R2

DIFF. SPIDER

Cross

1шт.

6

361061R3

PINION

15 Tooth

2шт.

7

87354342

GEAR

Driven 66 Tooth

1шт.

8

131475R91

TAPERED BEARING,2.075" ID x 4.4375" OD

1шт.

9

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

1шт.

10

1997956C2

CAGE

Differential Bearing

1шт.

11

1997947C2

SHIM,134mm ID x 176mm OD x 0.08mm Thk

1шт.

12

1997958C2

SHIM,134mm ID x 176mm OD x 0.13mm Thk

1шт.

13

1997957C2

SHIM,134mm ID x 176mm OD x 0.81mm Thk

1шт.

14

236388A1

BRAKE ASSY.

2шт.

15

230446A1

SCREW

Use for 2016

5шт.

15

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

Use from 2017

5шт.

16

87722166

HOUSING

Transmission Case

1шт.

17

239456A1

COVER

Transmission Case

1шт.

18

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

18шт.

19

217-504

DRAIN PLUG,Hex Hd, 1/4"-18, NPTF

2шт.

20

218-5212

PLUG,1-1/16" - 12 ORB

2шт.

21

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

22

230447A1

HEX SOC SCREW

Use for 2016

12шт.

22

863-16090

HEX SOC SCREW,M16 x 90mm, Cl 12.9

Use from 2017

12шт.

23

87354341

SHAFT

Gear Differential Pinion, 14 Tooth

1шт.

24

1997649C1

PINION,35T

Gear Driven, 39 Tooth

1шт.

25

196693H1

RING

2шт.

26

87305298

GEAR,59T, 39T, 27T

Shaft

1шт.

27

675708R91

NEEDLE BEARING

2шт.

28

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

Spool Gear

1шт.

29

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

Use for 2016

1шт.

29

84159174

CLUTCH PLATE,161.8mm ID x 228.5mm OD x 2.85mm Thk

Use from 2017

1шт.

29

47882457

DISC

Use from 2017

1шт.

30

131312C1

BEARING CUP

1шт.

31

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

32

84147486

SPACER,47.95mm ID x 62mm OD x 4.5mm L

Spool Gear, Use for 2016

1шт.

33

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

34

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

35

57861H

BEARING CUP

1шт.

36

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

3шт.

37

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

1шт.

38

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

1шт.

39

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

1шт.

40

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

1шт.

41

183089A1

SCREW

3шт.

42

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

1шт.

43

NSS

NOT SOLD SEPARAT

Case, LH,order REF.3, Use for 2016

1шт.

43

1997408C2

DIFFERENTIAL GEAR

Housing, LH, Use from 2017

1шт.

44

NSS

NOT SOLD SEPARAT

RH,order REF. 3

1шт.

Выбрано товаров: 49
