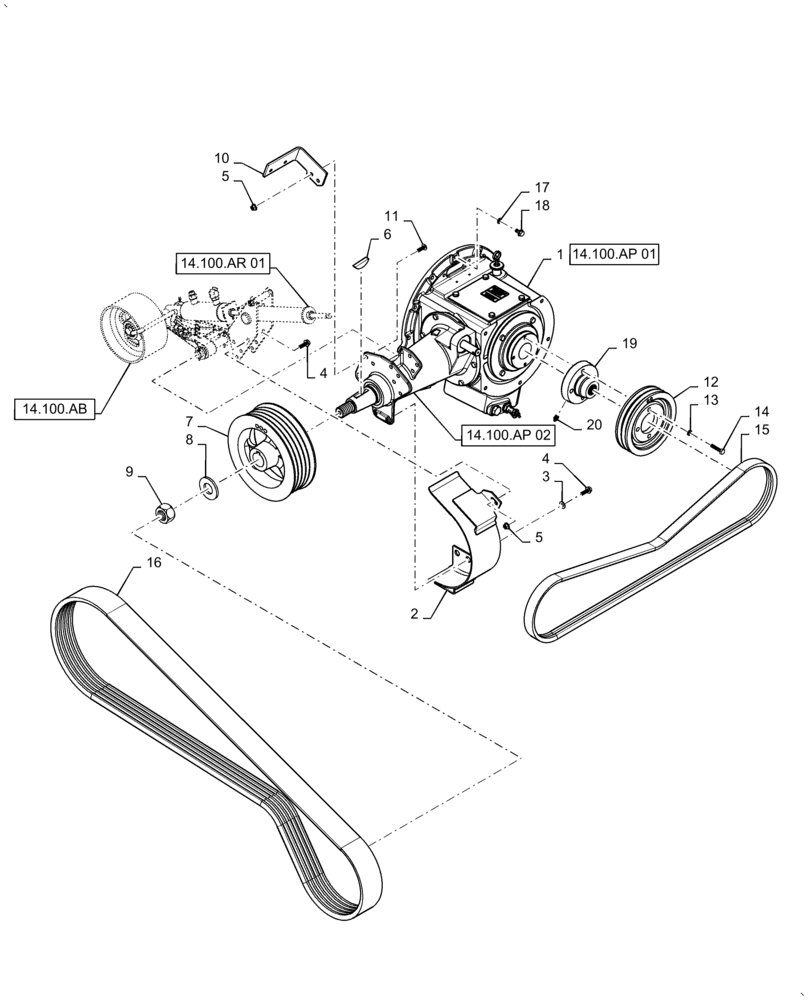

Запчасти Case IH AF4088 (14.100.BH [01]) - PTO, DRIVE BELT, INSTALLATION (14) - MAIN GEARBOX & DRIVE

1

84346357

GEARBOX

Assy, Power Take Off

1шт.

2

84487549

SHIELD

Wrapper Assy, Separator Drive

1шт.

3

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

10шт.

6

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

7

84481001

PULLEY

Separator Drive

1шт.

8

84370840

WASHER,38.8mm ID x 78.5mm OD x 7mm Thk

1шт.

9

84370841

NUT

Prevailing Torque

1шт.

10

84360260

BRACKET

Support, Belt Guide Channel, Lower

1шт.

11

87477170

SCREW

2шт.

12

87545153

PULLEY

Pump, Use for 2015

1шт.

12

47862331

Pressure Flow Compensated Pump, 2HB Drive, Use from 2016

PULLEY

1шт.

13

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

4шт.

14

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

15

84376536

BELT

Auxiliary Pump Drive

1шт.

16

47424853

Seperator Drive

V-BELT

1шт.

17

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock

12шт.

18

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

12шт.

19

47490242

Auxillary Belt Drive, 21T

HUB

1шт.

20

87588865

FITTING,M6 x 1 x 12mm L

Lube

2шт.
