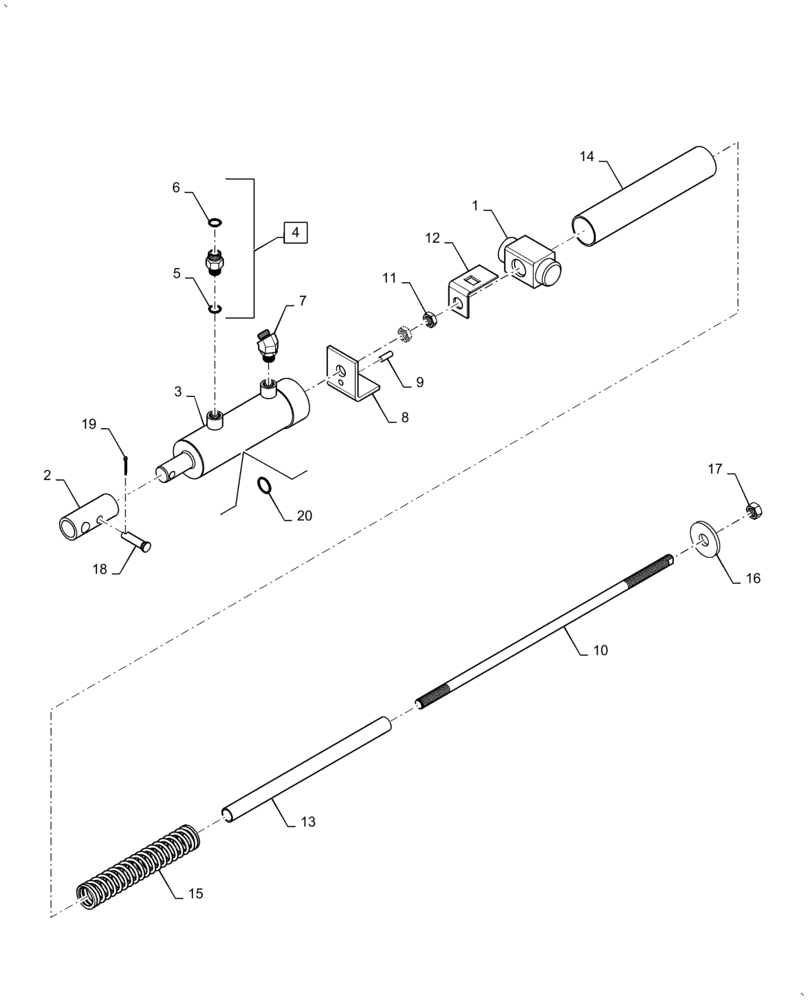

Запчасти Case IH AF4088 (14.100.AR[01]) - PTO, SEPARATOR, DRIVE (14) - MAIN GEARBOX & DRIVE

1

186747C3

PIVOT

1шт.

2

87522209

SLEEVE

Tube Cylinder Extension

1шт.

3

47738691

Separator Clutch, Incl 20, Use from 2016

HYDRAULIC CYLINDER

1шт.

4

47556653

Check With Orifice, Incl 5, 6

VALVE

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

84346907

ELBOW,M16 x 1.5 x 33.5mm

1шт.

8

186749C1

BRACKET

Angle, Separator Drive, Tightener Rod

1шт.

9

13909870

PIN,6mm OD x 20mm L

Coiled Spring

1шт.

10

47538677

Separator Belt, Tension

ROD

1шт.

11

10717511

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

12

87642389

ANGLE

Separator Belt, Tension Guide

1шт.

13

363449A2

TUBE,16.7 mm ID, 22.2 mm OD, 324.1 mm Length

1шт.

14

87331921

SLEEVE,41.53mm ID x 47.62mm OD x 246mm L

Separator Belt, Tensioning

1шт.

15

87337201

SPRING

Separator Belt, Tension

1шт.

16

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

1шт.

17

392530

NUT,M16, Cl 10

1шт.

18

427-6178

CLEVIS PIN,9.53mm OD x 45.24mm L

1шт.

19

432-612

COTTER PIN,3/32" x 3/4"

1шт.

20

47739741

Hydraulic Cylinder,use from 2015, 2014 use part 47468194, Start Serial: start YERA00018

SEAL KIT

1шт.
