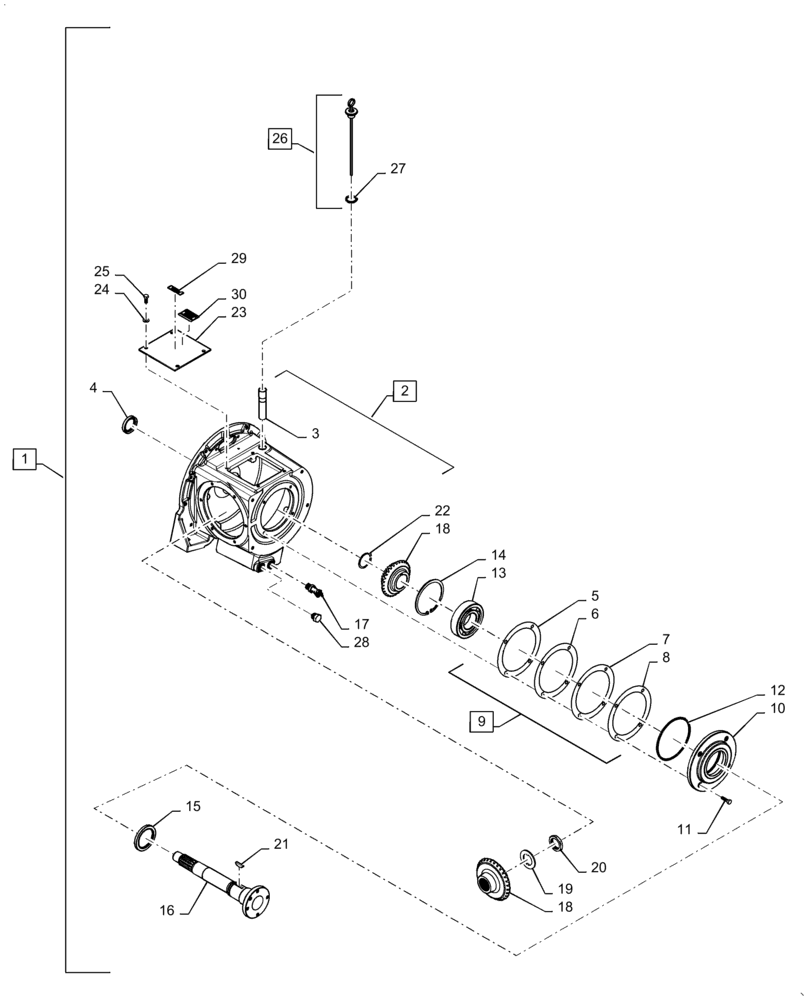

Запчасти Case IH AF4088 (14.100.AP[01]) - PTO GEAR BOX ASSY (14) - MAIN GEARBOX & DRIVE

1

84346357

GEARBOX

Assembly, Power Take Off, Incl 2 - 30

1шт.

2

84343122

HOUSING

Assy, Engine Power Take Off, Incl 3

1шт.

3

188072C1

TUBE,25.4 mm OD, 127 mm Length

1шт.

4

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

1шт.

5

84364125

SHIM

2шт.

6

84364126

SHIM

2шт.

7

84364127

SHIM

2шт.

8

84364128

SHIM

2шт.

9

84364129

SHIM

Kit, Incl 5 - 8

1шт.

10

84364135

FLANGE

Housing, Power Take Off Drive Shaft Bearing

1шт.

11

86625011

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

10шт.

12

238-6260

O-RING,0.139" Thk x 6.484" ID, -260, Cl 6, 90 Duro

1шт.

13

87603651

BALL BEARING,65mm ID x 140mm OD x 33mm W

1шт.

14

11076976

SNAP RING,M140, Int

Retain

1шт.

15

87311003

SEAL,76.2mm ID x 101.8mm OD x 9.53mm Thk

Lip

1шт.

16

84364136

SHAFT

Power Take Off Drive Input

1шт.

17

87485712

DRAINCOCK/TAP SUPPLY

Valve Assy, Hydraulic

1шт.

18

84338714

GEAR

Bevel, Spiral, Set

1шт.

19

84415953

WASHER,45.4mm ID x 75mm OD x 4mm Thk

Lock

1шт.

20

84415954

SPECIAL NUT,M45 x 1.5

Thin Stake

1шт.

21

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

1шт.

22

87314980

RING

Ring, Retaining Beveled Extension

1шт.

23

84364137

COVER

Power Take Off Housing

1шт.

24

12638601

WASHER,M10 x 18 x 2

4шт.

25

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

4шт.

26

186019C91

DIPSTICK

Gage Assy, Incl 27

1шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

28

87108781

PLUG

Magnetic

1шт.

29

NSS

NOT SOLD SEPARAT

Decal, Label, National Extra Fine Power Take Off Gearbox, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Decal, Label, National Extra Fine Power Take Off Gearbox, Incl in 1

1шт.
