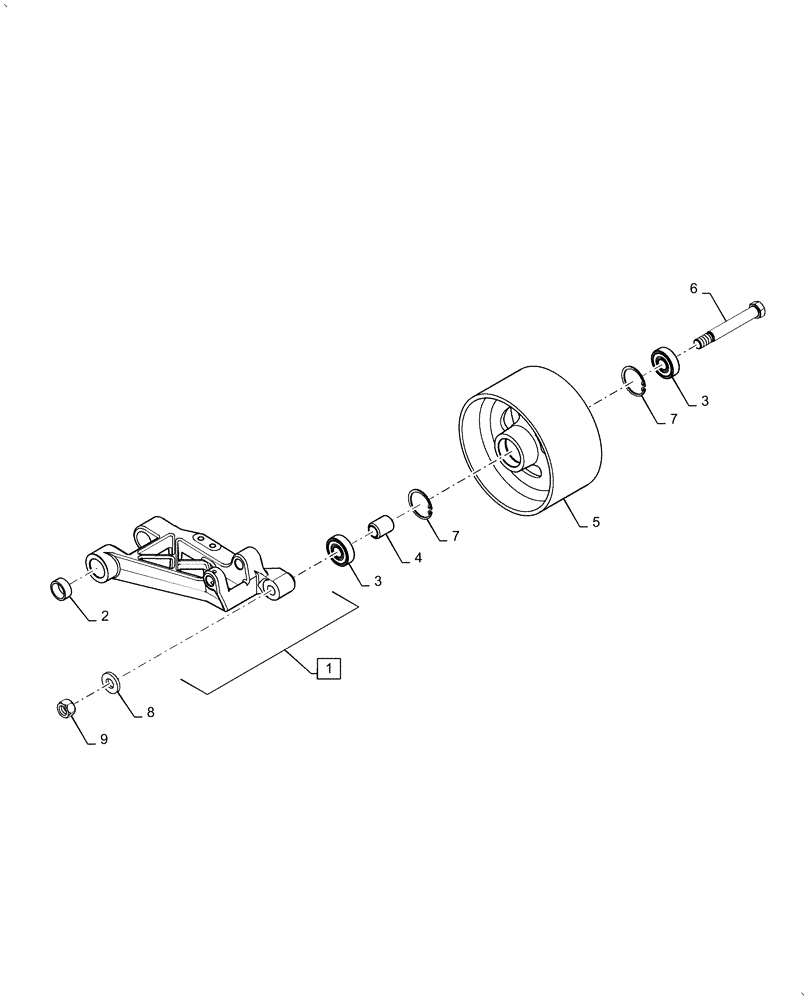

Запчасти Case IH AF4088 (14.100.AB) - ARM ASSY, SEPARATOR, IDLER, PULLEY, PTO (14) - MAIN GEARBOX & DRIVE

1

84421043

ARM

Assy, Incl 2

1шт.

2

87559340

SLEEVE

Bushing Separator Drive Idler Arm

2шт.

3

87306803

BALL BEARING,17mm ID x 47mm OD x 14mm W

Separator Idler

2шт.

4

87301564

SPACER,17.48mm ID x 25.4mm OD x 33.83mm L

1шт.

5

87629094

PULLEY

Idler, Use for 2015

1шт.

5

47861335

Seperator Drive, Use from 2016

IDLER

1шт.

6

47538673

Idler Pulley Seperator Drive

BOLT

1шт.

7

800-2147

SNAP RING,M47, Int

2шт.

8

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

Flat

1шт.

9

84246770

Plain, LH

NUT

1шт.
