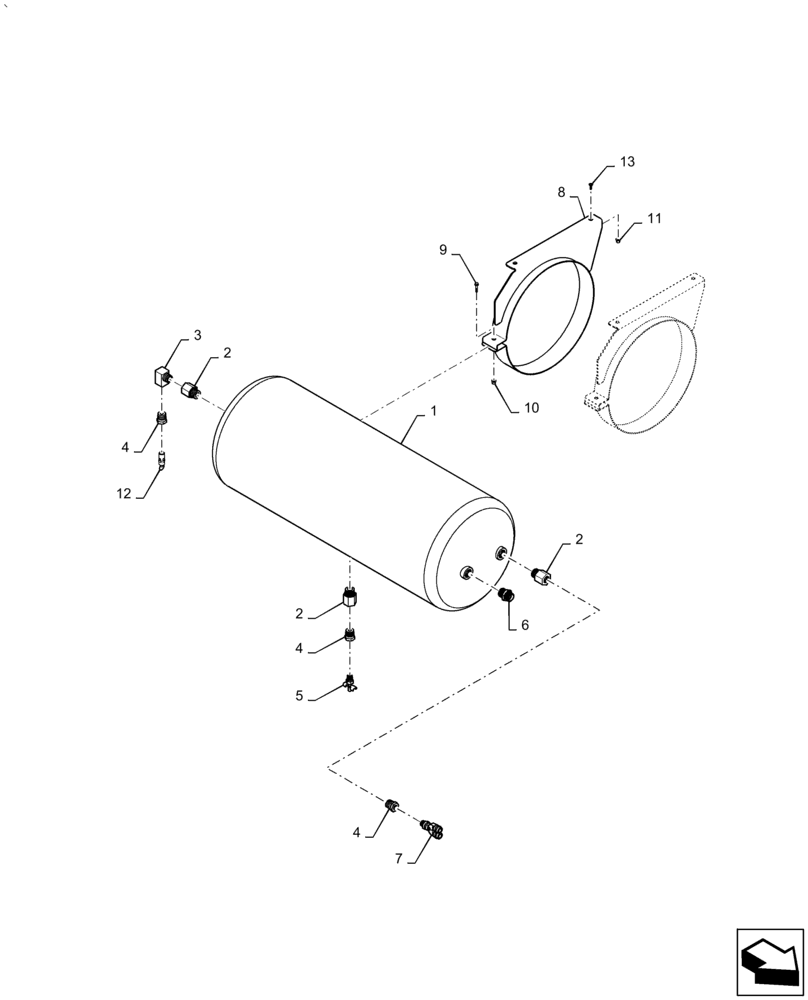

Запчасти Case IH AF4088 (10.450.AF) - AIR COMPRESSOR TANK (10) - ENGINE

1

84036945

AIR RESERVOIR

Pressure Kit

1шт.

2

84171940

HYD CONNECTOR

Adapter

3шт.

3

217-23

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

1шт.

4

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

Bushing

3шт.

5

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, Drain

1шт.

6

87538605

HYD CONNECTOR

Straight

1шт.

7

84249467

FITTING

Adapter

1шт.

8

84144718

BRACKET

Painted, Reservoir

2шт.

9

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange

2шт.

10

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

12

84994447

VALVE PRESSURE RELIE

Safety

1шт.

13

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.
