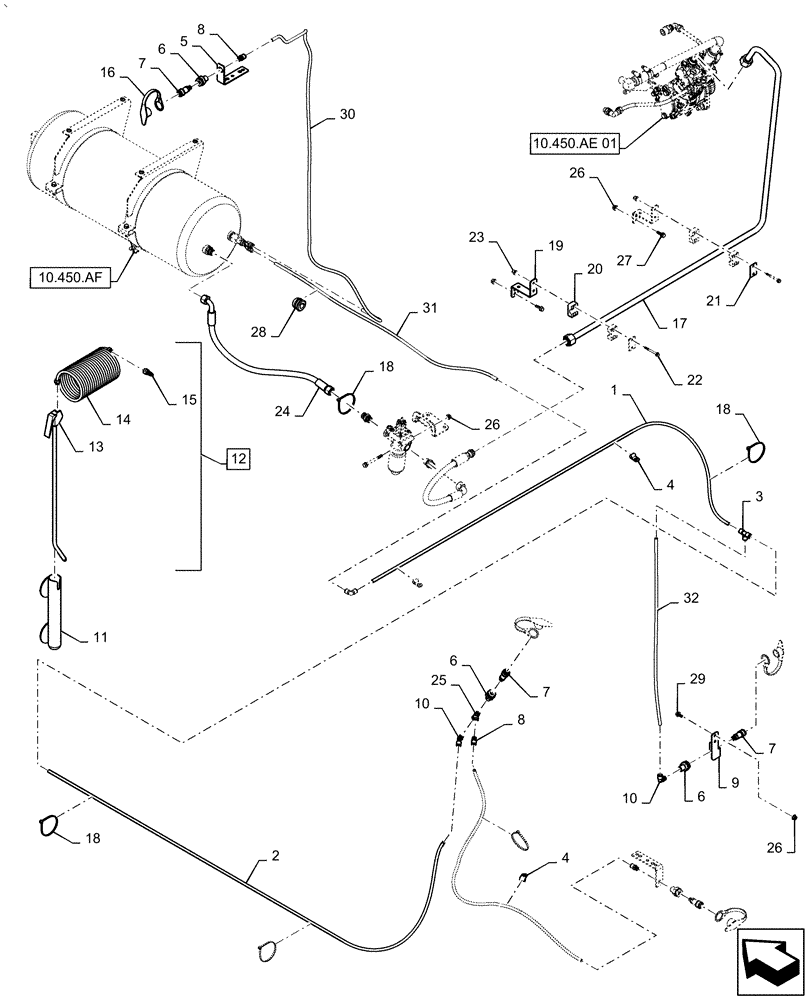

Запчасти Case IH AF4088 (10.450.AE[02]) - AIR COMPRESSOR INSTALLATION (10) - ENGINE

1

84216054

HOSE

Assy, OP Plate Quick Disconnect Coupling to Undercab Quick Disconnect Coupling

1шт.

2

47364924

HYDRAULIC HOSE

Assy, Reservoir to Beacon Quick Disconnect Coupling

1шт.

3

84175931

HYD CONNECTOR

Tee, Push Connect

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3шт.

5

84154228

BRACKET

Painted, Quick Connect

1шт.

6

84171982

HYD CONNECTOR

Bulkhead

4шт.

7

84172049

COUPLING

Coupling, Quick, Female

4шт.

8

84162977

HYD CONNECTOR

Adapter, Push Connect

1шт.

9

47605285

Bracket, Quick Connect

SUPPORT

1шт.

10

84162975

HYD CONNECTOR

Elbow

1шт.

11

84190520

NOZZLE HOLDER

Blowgun

1шт.

12

84182443

AIR GUN

Assy, Blowoff, Incl 13 - 15

1шт.

13

84181953

AIR GUN

Blowoff

1шт.

14

84181958

TUBE,25mm ID x 69mm OAL

Assy,Self Coiling

1шт.

15

84172050

HYD CONNECTOR

Coupling, Quick, Male

1шт.

16

47672808

COVER

Dust

4шт.

17

84342704

RIGID TUBE

Compressor to Union

1шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

Nylon

6шт.

19

47557147

Bracket, Tube and Hose

SUPPORT

2шт.

20

86900723

CLAMP

Hydraulic Tube

2шт.

21

86900727

COVER

Plate, Clamp, Single

2шт.

22

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

Flange

4шт.

23

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

24

47552118

Assy, Tube to Reservoir

HOSE

1шт.

25

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

Branch

1шт.

26

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

27

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

28

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

Air Hose

1шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

30

47640882

HOSE

Air

1шт.

31

84172815

AIR HOSE,7.11mm ID x 1150mm OAL

1шт.

32

84173552

AIR HOSE,7.11mm ID x 1000mm OAL

Assy

1шт.
