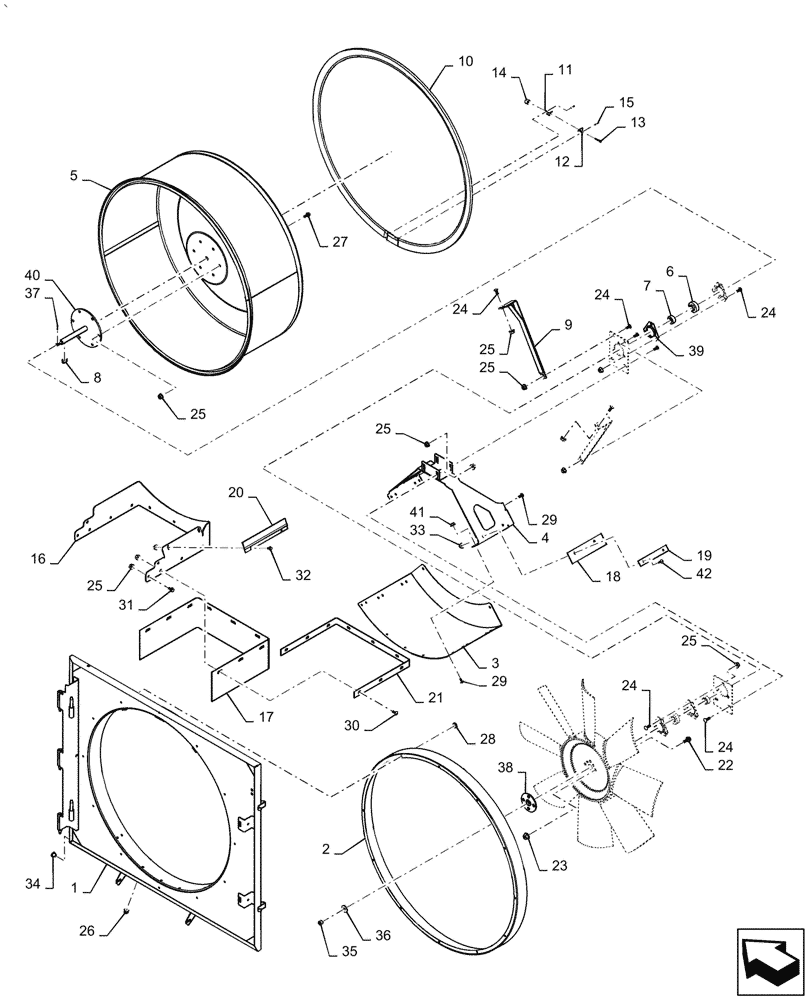

Запчасти Case IH AF4088 (10.414.AC[02]) - ENGINE FAN DRIVE (10) - ENGINE

1

47547041

Weld Assy

DOOR

1шт.

2

47474555

Brush

SEAL

1шт.

3

47585576

Weld Assy, Rotary Screen

BAFFLE

1шт.

4

47585522

Weld Assy, Bearing, Radiator Assy

SUPPORT

1шт.

5

47556670

Weld Assy, Rotary

SCREEN

1шт.

6

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

Bore

2шт.

7

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

Bearing Lock

2шт.

8

10617610

KEY,5mm x 5mm x 10mm

1шт.

9

47625003

Assy, Radiator Assy

SUPPORT

2шт.

10

47474536

Circular, Rotary Screen

BRUSH

1шт.

11

164616C1

ANGLE

Brush Short - Clip

1шт.

12

164617C1

ANGLE

Brush Long - Clip

1шт.

13

10978231

BOLT,Hex, M5 x 25mm, Cl 10.9, Full Thd

1шт.

14

12574115

NUT

Privilege Torque

1шт.

15

84224895

POP RIVET

Circular, Rotatry Screen

4шт.

16

47566121

Drop Chute red

PANEL

1шт.

17

47566287

Discharge Chute, Radiator Assy

SHEET,MASTICATED RUBBER

1шт.

18

47566172

Baffle Rear

SEAL

2шт.

19

47742593

Baffle Seal

STRIP

2шт.

20

47566176

Mechanical, Rotary Screen

BRUSH

1шт.

21

47566146

Chute

BRACKET

1шт.

22

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

24

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

14шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

33шт.

26

87613319

Pop

RIVET

7шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

15шт.

28

151-509

RIVET,Pop, 3/16" x .325"

12шт.

29

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

10шт.

30

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

9шт.

31

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

4шт.

32

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

33

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

4шт.

34

331233

PLUG

Button

1шт.

35

100030

NUT

1шт.

36

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

37

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

38

47464356

Weld Assy, Rotary Fan

HUB

1шт.

39

H333534

FLANGED BEARING

1шт.

40

47624994

Weld Assy Rotary Screen

SHAFT

1шт.

41

86050300

FLANGE NUT,M6 x 1.0, Cl 10

12шт.

42

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

4шт.
