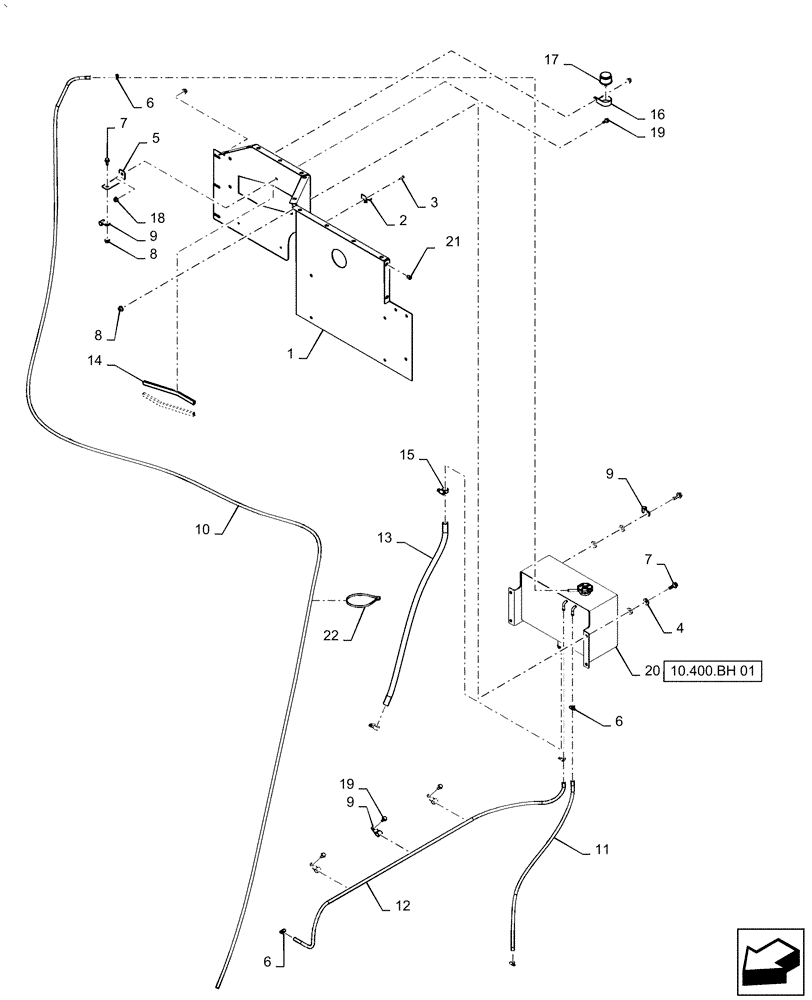

Запчасти Case IH AF4088 (10.400.BH[02]) - BRACKET, DEAERATION SYSTEM (10) - ENGINE

1

47464328

Engine Cover, Rear

SHEET

1шт.

2

167800C1

CLIP

Fastener, Door Retain

2шт.

3

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

4

87613214

WASHER,0.41" ID x 1" OD x 0.18" Thk

8шт.

5

47556643

Dearation Hose

SUPPORT

1шт.

6

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

5шт.

7

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

9

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

10

86989959

LARGE HOSE,8mm ID x 7620mm L

Radiator Drain

1шт.

10

87408617

HOSE,7.92mm ID x 4850mm L

Radiator Drain

1шт.

11

47464323

Assy, Deaeration

HOSE

1шт.

12

47464324

Assy, Deaeration

HOSE

1шт.

13

47464326

Assy, Deaeration

HOSE

1шт.

14

87029779

SEAL

Trim

2шт.

15

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

16

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

17

86999949

FUEL FILTER

Fuel, Tank Ventilate, CIH

1шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

5шт.

20

87703238

TANK

1шт.

21

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

13шт.

22

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.
