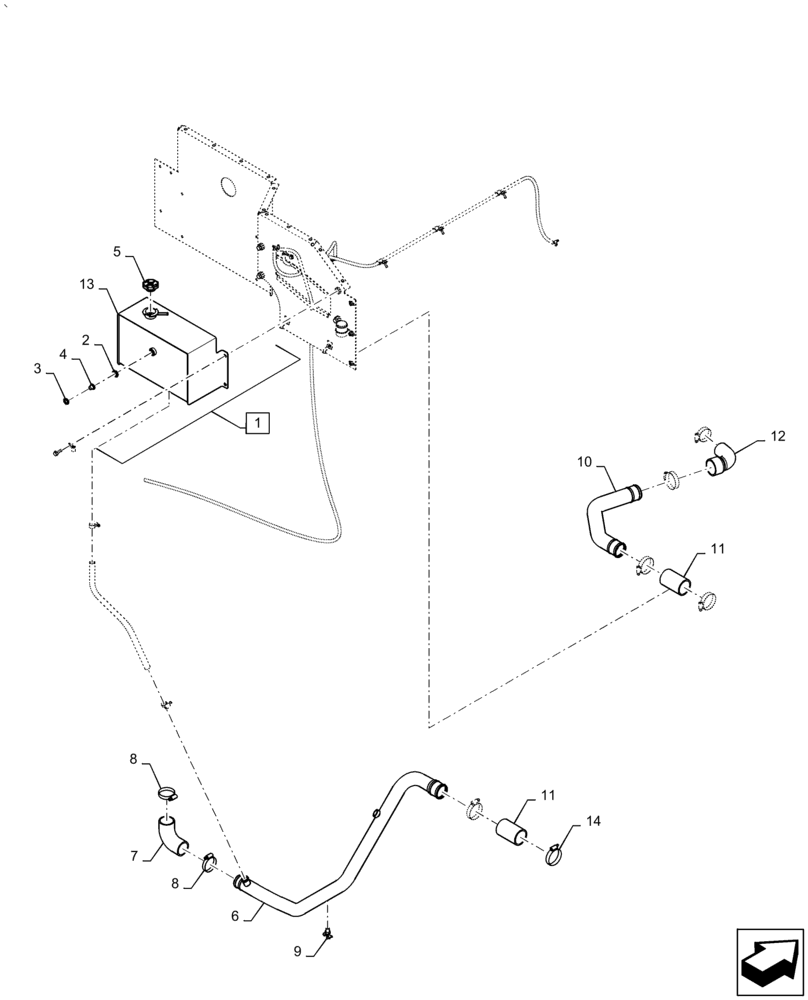

Запчасти Case IH AF4088 (10.400.BH[01]) - DEAERATION SYSTEM (10) - ENGINE

1

87703238

TANK

Incl 2 - 5, 13

1шт.

2

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

3

86990537

NUT,15/16"

1шт.

4

86990536

LENS

Sight Bulb

1шт.

5

87109814

FILLER CAP

Deaeration Tank

1шт.

6

47605959

Lower Radiator

TUBE

1шт.

7

84378692

RADIATOR HOSE

1шт.

8

86625019

HOSE CLAMP,44mm - 67mm

Gear

2шт.

9

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve

1шт.

10

47605956

Upper Radiator

TUBE

1шт.

11

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Radiator

2шт.

12

47621822

Radiator

HOSE

1шт.

13

87703236

TANK

Deaeration

1шт.

14

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

2шт.
