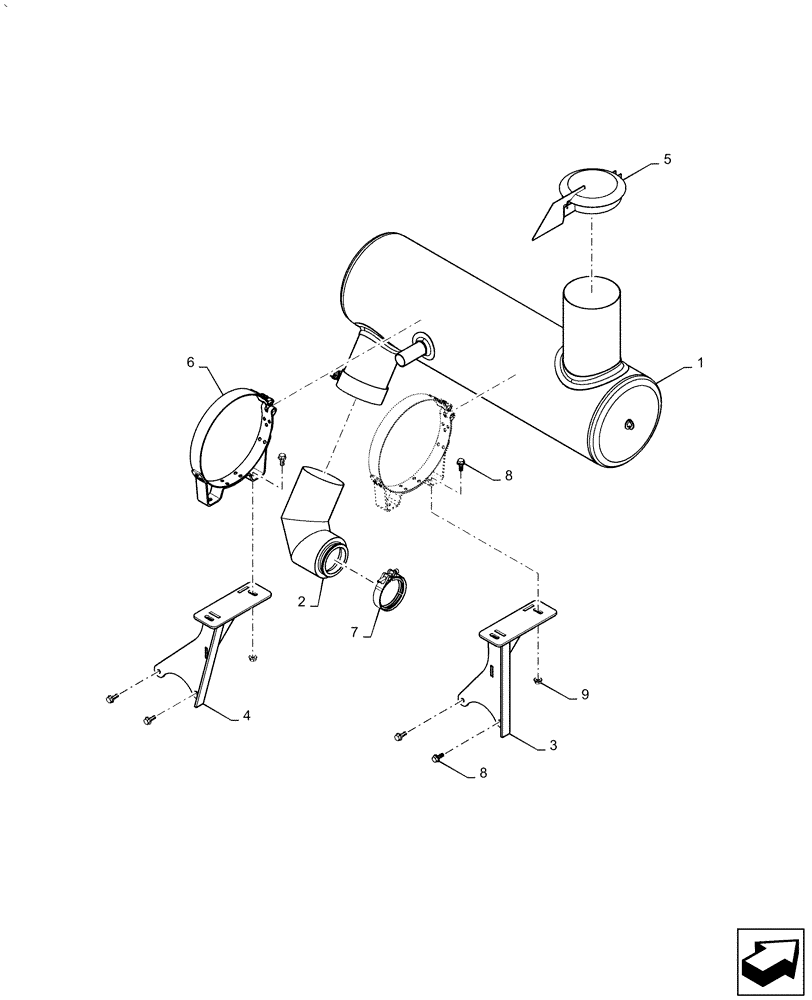

Запчасти Case IH AF4088 (10.254.AI) - EXHAUST SYSTEM (10) - ENGINE

1

47561739

Engine Exhaust

MUFFLER

1шт.

2

47468216

Weld Assy, Exhaust

TUBE

1шт.

3

47511234

Bracket Weld Assy, Exhaust Mount Front

SUPPORT

1шт.

4

47511224

Bracket Weld Assy, Exhaust Rear

SUPPORT

1шт.

5

84594139

COVER,5" ID, High Temperature

Rain Exhaust

1шт.

6

87301605

CLAMP,228.6mm ID

Muffler Mounting

2шт.

7

84460193

CLAMP,81mm - 84mm

Strap Retaining

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
