Запчасти Case IH AF4088 (90.160.BL[06]) - CAB, CONSOLE, RH, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

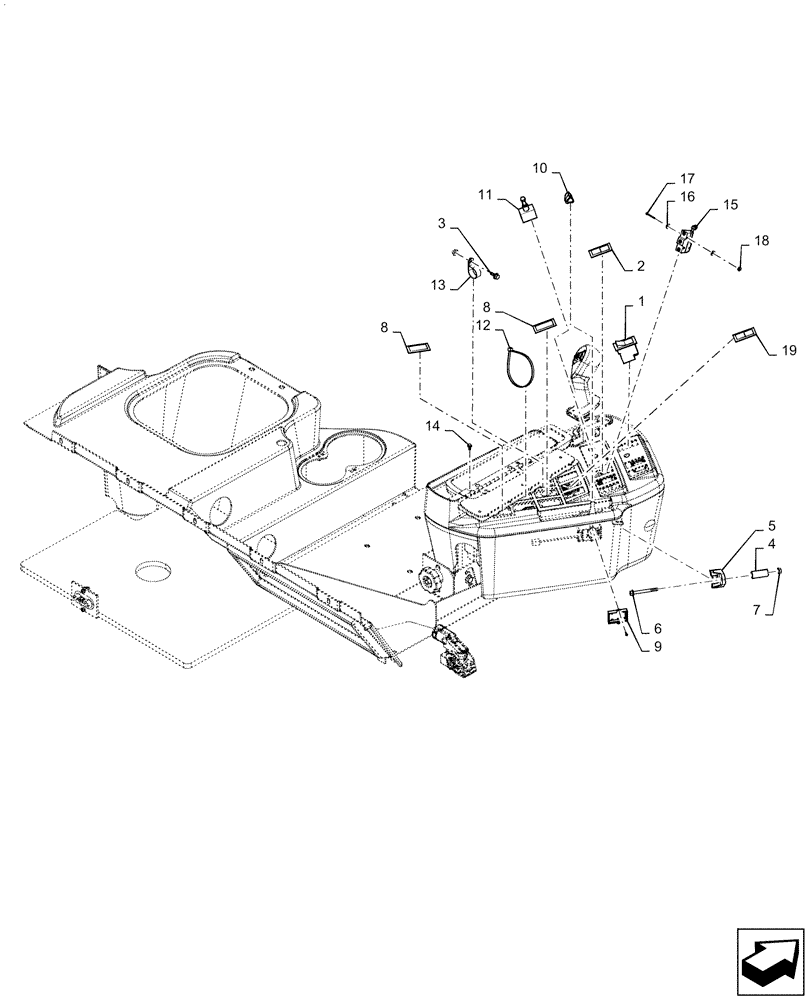

Схема запчастей Case IH AF4088 - (90.160.BL[06]) - CAB, CONSOLE, RH, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
17
6
14
11
15
5
13
18
1
10
7
8
3
8
2
9
16
4
19

Артикул

Название

Примечание

Количество

1

124098A1

SWITCH

Rocker Park Brake

2шт.

2

47589684

Rocker, Reel Speed

SWITCH

1шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

4

84265307

TUBE SPACER,10.3mm ID x 15.9mm OD x 36.5mm L

2шт.

5

87588035

BRACKET

2шт.

6

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

7

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

8

245918C1

LENS

Plug

14шт.

9

84218029

POTENTIOMETER,20,000 Ohm, 5.5V

Throttle, Assy

1шт.

10

84393337

KNOB

Throttle

1шт.

11

245632C2

SWITCH

2шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

13

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

Closed, Insulated Bolt

2шт.

14

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

15

141655A1

SWITCH

1шт.

16

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

17

463-10416

SCREW,Hex Hd, #4-40 x 1"

Use for 2015

2шт.

17

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

Use from 2016

2шт.

18

225-14104

NUT,#4-40

Use for 2015

2шт.

18

824-1403

NUT,M3, Cl 5

Use from 2016

2шт.

19

87682766

SWITCH ASSY

Rotor Speed

1шт.

Выбрано товаров: 21
