Запчасти Case IH AF4088 (90.160.BL[04]) - CAB, CONSOLE, RH, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

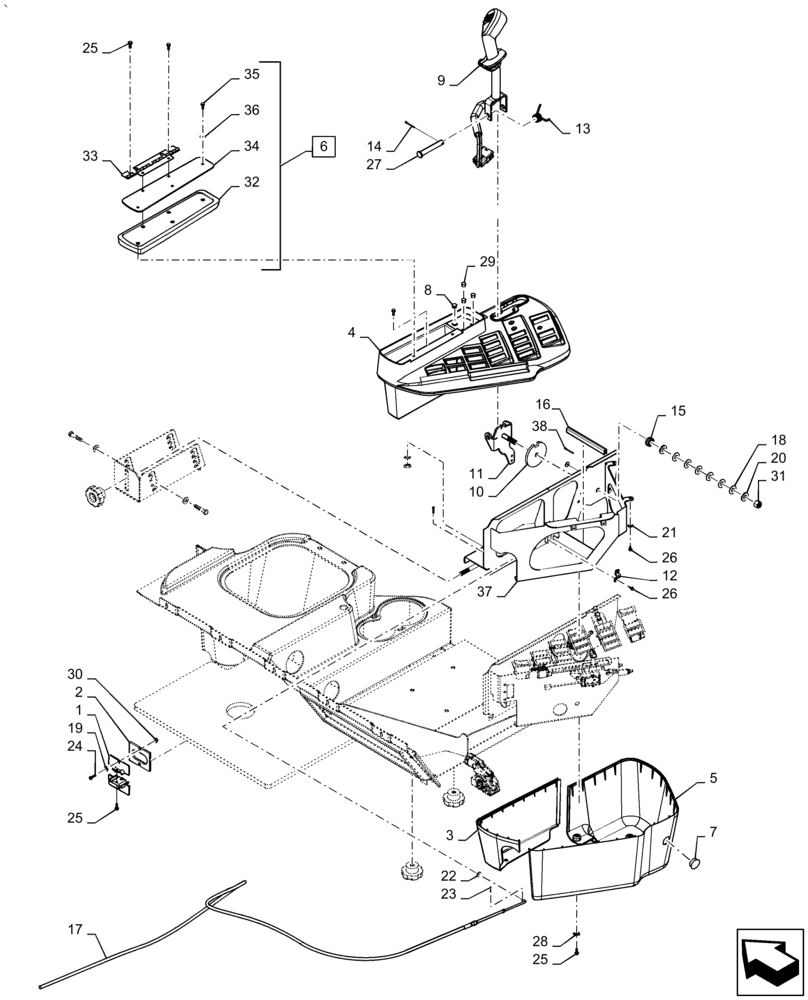

Схема запчастей Case IH AF4088 - (90.160.BL[04]) - CAB, CONSOLE, RH, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
24
21
25
38
18
5
26
4
37
28
7
32
14
1
3
10
19
30
29
17
25
20
15
26
6
23
34
11
36
16
9
2
33
8
31
22
12
13
25
27
35

Артикул

Название

Примечание

Количество

1

119314A1

CLAMP

Bulkhead Two Cable

2шт.

2

119328A1

GASKET,5mm Thk

Bulkhead Clamp

1шт.

3

87613246

COVER

Skirt, Console Rear

1шт.

4

47606510

Assy, RH Console

COVER

1шт.

5

87613245

COVER

Skirt, Console Front

1шт.

6

128970A3

ARMREST

Console, Rest Assy, Incl 32 - 36

1шт.

7

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

8

282056A1

PLUG

1шт.

9

47534118

Assy, Propulsion Control

LEVER

1шт.

10

251090A1

THRUST WASHER

1шт.

11

113318A2

SUPPORT

Assy, Propulsion Control Lever

1шт.

12

A75815

CLAMP

1шт.

13

128593A1

SPRING

Torsion

1шт.

14

432-816

COTTER PIN,1/8" x 1"

1шт.

15

159688R91

THRUST BEARING

1шт.

16

1327979C1

MOLDING

Trim

1шт.

17

115396A1

CABLE

Control

1шт.

18

1994980C1

BELLEVILLE WASHER

6шт.

19

492-11010

LOCK WASHER,#10

2шт.

20

86625244

WASHER,0.47" ID x 1" OD x 0.1" Thk

2шт.

21

178378

LOCK WASHER,Ext-Int Tooth, #10

2шт.

22

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

23

432-48

COTTER PIN,1/16" x 1/2"

Use for 2015

1шт.

24

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Captive Washer

6шт.

26

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

6шт.

27

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

28

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

29

353-402

PLUG,Dome, .375" hole, Nylon

4шт.

30

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

31

231-1447

NUT,7/16"-14, GB

Prev Torque

1шт.

32

128971A2

ARMREST

Rest Assy

1шт.

33

128849A2

HINGE

Arm Rest

1шт.

34

185546A1

PLATE

Arm Rest

1шт.

35

87481583

SCREW,M4 x 0.7 x 0.7mm

5шт.

36

87481591

LOCK WASHER

5шт.

37

47656675

Weld Assy, Console

FRAME

1шт.

38

32-410

COTTER PIN,1/16" x 5/8"

1шт.

Выбрано товаров: 38
