(90.160.BL[03]) - CAB, CONSOLE, RH, HEATER ONLY, USE FOR 2016

Запчасти Case IH AF4088 (90.160.BL[03]) - CAB, CONSOLE, RH, HEATER ONLY, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

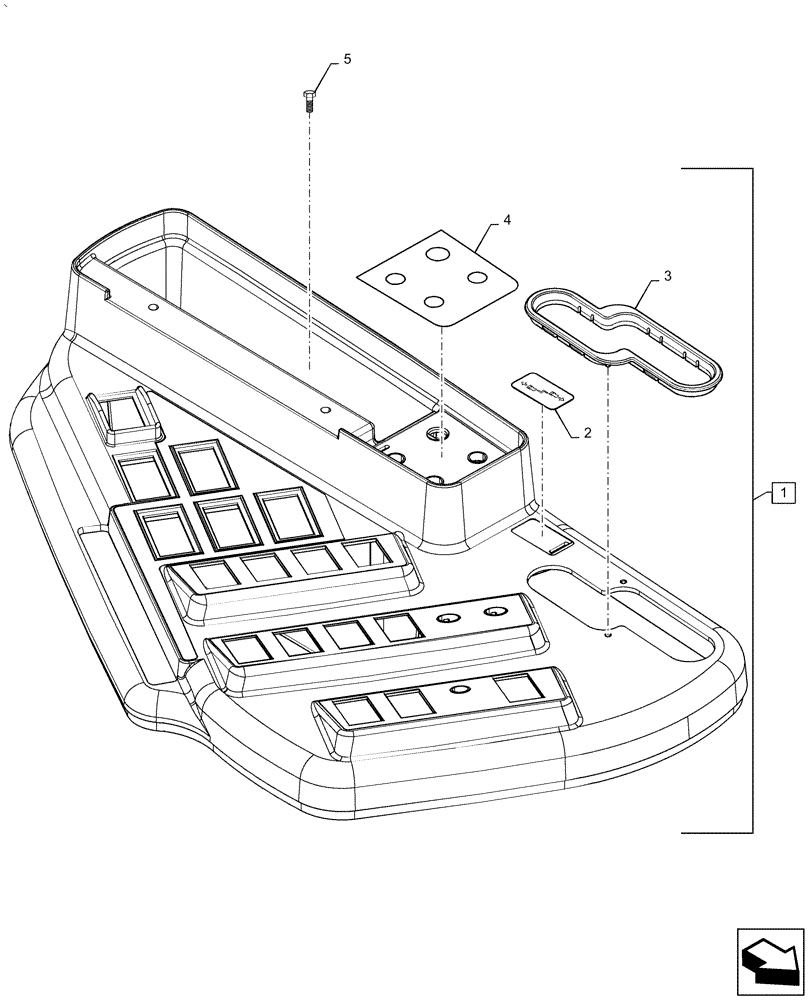

Схема запчастей Case IH AF4088 - (90.160.BL[03]) - CAB, CONSOLE, RH, HEATER ONLY, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
1
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47606510

Assy, RH Console, Incl 2 - 4

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

3

128833A2

GUIDE

1шт.

4

NSS

NOT SOLD SEPARAT

Remote Blank Potentiometer, Incl in 1

1шт.

5

615-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 5
