Запчасти Case IH AF4088 (90.160.AX[02]) - CAB, HEADLINER, HEATER, AIR CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS

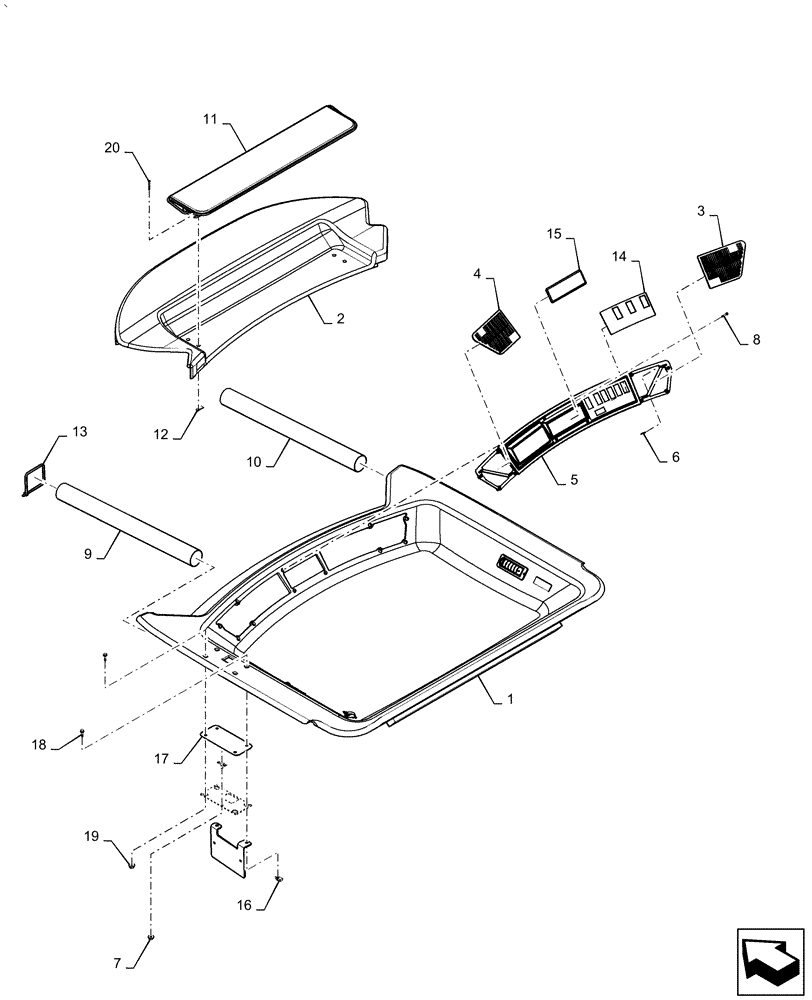

Схема запчастей Case IH AF4088 - (90.160.AX[02]) - CAB, HEADLINER, HEATER, AIR CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
10
7
11
5
16
14
18
8
6
1
2
12
3
19
20
13
15
17
9

Артикул

Название

Примечание

Количество

1

87388118

LINER

Head, Rear

1шт.

2

84378989

HEADLINER

Front

1шт.

3

1971229C2

COVER

Panel

1шт.

4

1971349C2

COVER

Panel

1шт.

5

87686440

TRIM PANEL

Overhead Switch

1шт.

6

97058C1

CLIP

Retainer

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

8

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

9

383833A1

TUBE

1шт.

10

380524A1

HOSE,65.5mm ID x 545mm L

1шт.

11

87390618

VISOR, SUN

Assy

1шт.

12

60-6708T1

NUT

4шт.

13

58556C1

CABLE TIE

4шт.

14

47616823

Overhead Switch

DECAL

1шт.

15

1535219C1

COVER

1шт.

16

84409484

NUT

Push - On

2шт.

17

84403389

PLATE

Painted, Monitor Holes Cover

1шт.

18

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

20

13311817

SCREW,Pozidriv Oval Hd, Csk, M5 x 40mm, Cl 5.8

4шт.

Выбрано товаров: 20
