Запчасти Case IH AF4088 (90.160.AH[02]) - CAB INTERIOR TRIM, HEATER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

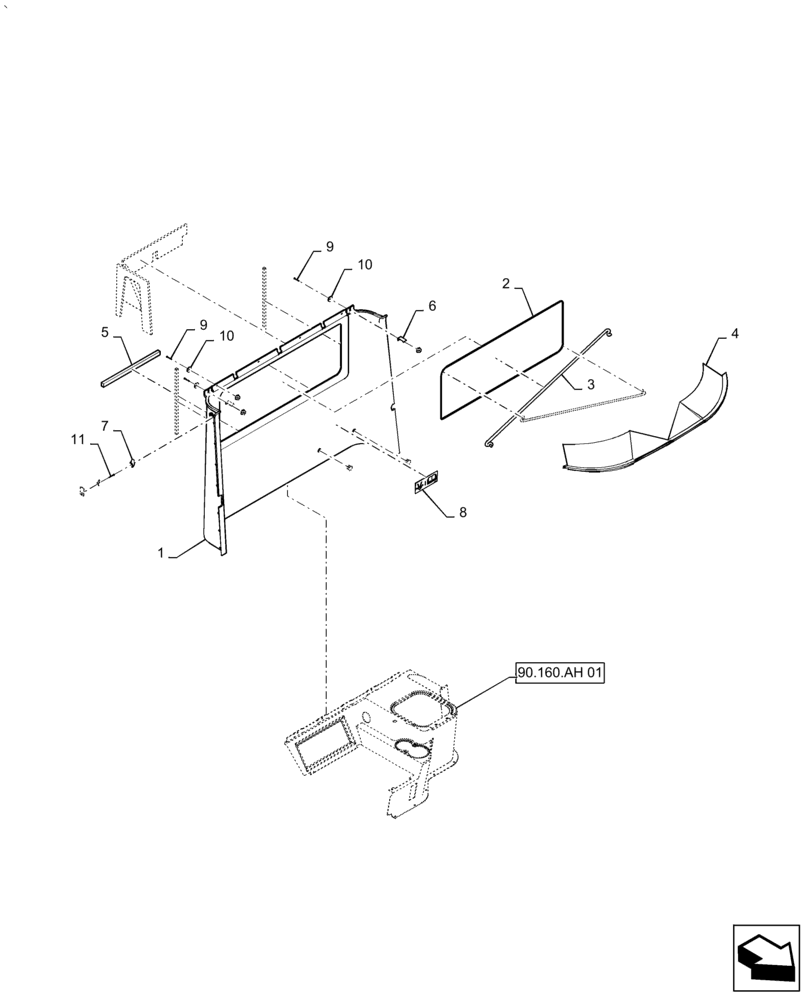

Схема запчастей Case IH AF4088 - (90.160.AH[02]) - CAB INTERIOR TRIM, HEATER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
7
1
4
5
8
11
3
90.160.ah 01
9
10
9
2
6

Артикул

Название

Примечание

Количество

1

47574090

Rear Wall Trim, Use for 2016

PANEL

1шт.

1

47987191

Rear Wall Trim, Use for 2017

PANEL

1шт.

2

87714844

FOAM INSULATION

Trim, Rear Window, Use for 2016

1шт.

3

143486A1

SUPPORT

2шт.

4

331728A1

FLOOR MAT

Cotton Harvester

1шт.

5

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

5шт.

6

87718124

CLIP

Headliner

2шт.

7

3234176R1

COAT HOOK

1шт.

8

371078A1

DECAL

Dont Block Filter

1шт.

9

15959204

SELF-TAP SCREW,Pan Hd, M5 x 20

Cross

13шт.

10

9602225

LOCK WASHER,#12

13шт.

11

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

Выбрано товаров: 12
