Запчасти Case IH AF4088 (90.160.AH[01]) - CAB INTERIOR TRIM, HEATER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

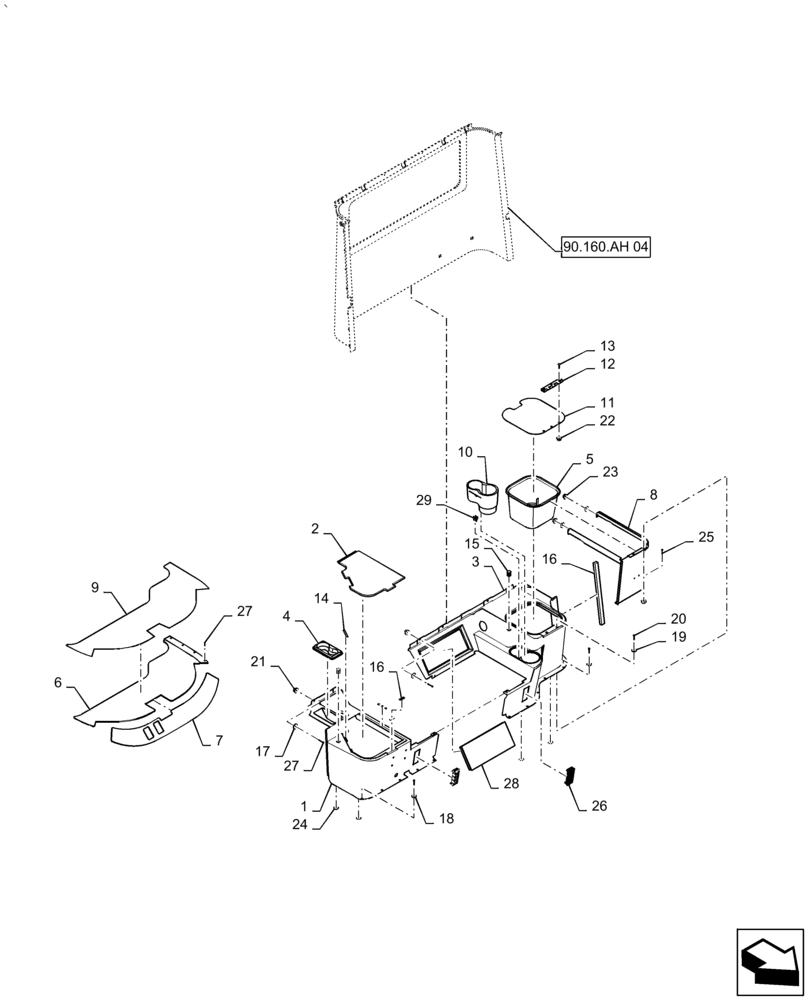

Схема запчастей Case IH AF4088 - (90.160.AH[01]) - CAB INTERIOR TRIM, HEATER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
1
6
2
21
9
28
8
22
17
24
10
26
12
3
19
5
20
11
23
14
18
27
27
13
90.160.ah 04
7
4
15
16
25
29

Артикул

Название

Примечание

Количество

1

87342568

SHIELD

Cover, Right Hand Pedestal

1шт.

2

87342570

ACCESS COVER

Fuse

1шт.

3

87342569

COVER

Left Hand Pedestal

1шт.

4

87580935

TRAY

Console Cupholder

1шт.

5

119308A2

TRAY

Storage

1шт.

6

136484A1

MAT

Floor, Barrier

1шт.

7

136485A1

MAT

Floor, Barrier

1шт.

8

47571106

Pedestal Cover

SUPPORT

1шт.

9

182658A1

PROTECTOR,Cardboard

Cover

1шт.

10

87342571

SHIELD

Trim, Cupholder

1шт.

11

47595812

Stowage Cover

LID

1шт.

12

121062A1

HINGE

1шт.

13

87622768

CARRIAGE BOLT,M6 x 1.0 x 15.6mm OAL, Cl 8.8

3шт.

14

1990258C1

SEAL

2шт.

15

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

16

121067A1

FASTENER

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Helical Spring

7шт.

18

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

11шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

21

86507064

FLANGE NUT,M5 x 0.8

13шт.

22

86981460

FLANGE NUT

3шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

24

87283846

TAPE

Magnetic

10шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Wheel House

13шт.

26

87281670

VENT

11шт.

27

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

4шт.

28

120486A2

FILTER

1шт.

29

278316A2

CLIP

2шт.

Выбрано товаров: 29
