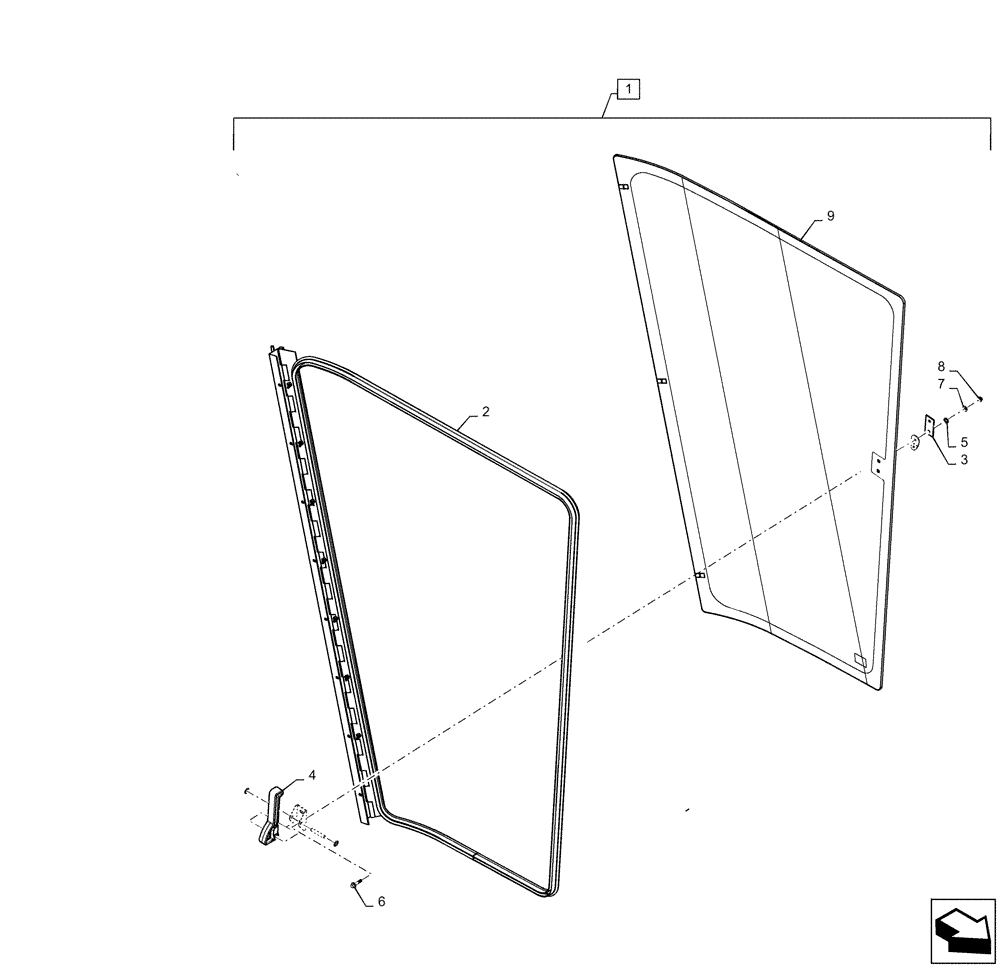

Запчасти Case IH AF4088 (90.154.AA[02]) - CAB DOOR, RH, HEATER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47797943

RH Assy, Incl 2 - 9

DOOR

1шт.

2

47797900

RH, Glass, Incl 9

DOOR

1шт.

3

NSS

NOT SOLD SEPARAT

Handle, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Lever Assy, Side Window, Incl in 1

1шт.

5

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

Plastic

2шт.

6

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

2шт.

7

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

Flat

2шт.

8

97005C1

FLANGE NUT

2шт.

9

47791963

Door RH

GLASS

1шт.
