(90.150.AC[04]) - CAB FRAME, HEATER, AIR CONDITIONER, USE FOR 2016

Запчасти Case IH AF4088 (90.150.AC[04]) - CAB FRAME, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

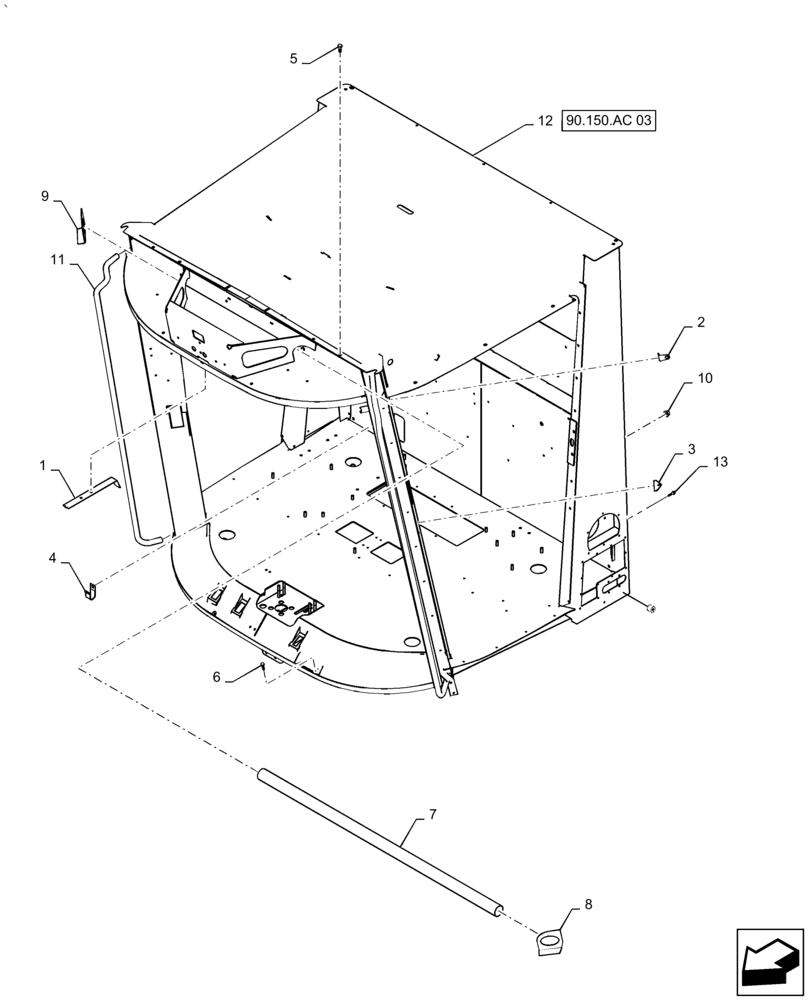

Схема запчастей Case IH AF4088 - (90.150.AC[04]) - CAB FRAME, HEATER, AIR CONDITIONER, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
90.150.ac 03
13
6
1
3
5
7
9
10
11
4
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

119608A5

Bracket, Sunvisor

SUPPORT

2шт.

2

119610A2

Bracket

SUPPORT

1шт.

3

NS

NOT SERVICED

Gas Spring Mounting

1шт.

4

97249C1

CLIP

3шт.

5

87015750

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

6

412247

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

7

47612574

Lift

TUBE

1шт.

8

47613597

Bracket LH, Lift Tube

SUPPORT

1шт.

9

47613639

Bracket, RH, Lift Tube

SUPPORT

1шт.

10

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

11

47776178

RH, Post

HANDRAIL

1шт.

12

47526498

FRAME

1шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

Flange

1шт.
