Запчасти Case IH AF4088 (90.150.AC[03]) - CAB FRAME, HEATER, AIR CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS

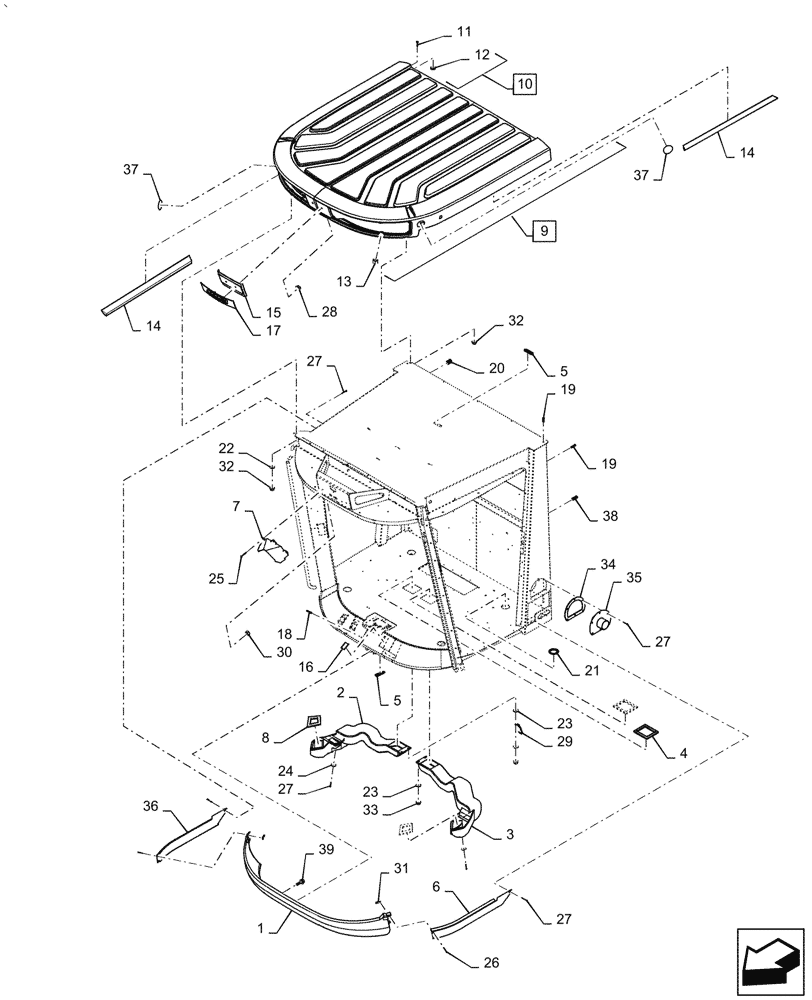

Схема запчастей Case IH AF4088 - (90.150.AC[03]) - CAB FRAME, HEATER, AIR CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
22
27
32
35
30
1
5
28
33
19
14
14
34
24
27
17
7
23
26
5
20
38
29
36
2
4
9
15
37
11
25
16
18
39
3
21
19
27
32
6
37
10
27
31
8
13
23

Артикул

Название

Примечание

Количество

1

47606042

Front, Use for 2015

COVER

1шт.

1

47901906

Lower Front, Use from 2016

COVER ASSY

1шт.

2

129227A2

AIR DUCT

Right

1шт.

3

129225A2

AIR DUCT

Left

1шт.

4

129228A4

FOAM INSULATION

2шт.

5

137293A1

PLUG

Car

4шт.

6

139597A2

COVER

LH

1шт.

7

47702972

COVER

1шт.

8

196542A2

FOAM INSULATION

Seal

2шт.

9

47605520

Assy, Incl 10 - 13

ROOF

1шт.

10

47596713

Assy, Incl 11, 12

ROOF

1шт.

11

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

12

230484A1

NUT

4шт.

13

131-839

SPRING NUT,U, #10-16, Panel type

16шт.

14

232801A1

DOOR SEAL

2шт.

15

232846A2

COVER

1шт.

16

87379592

DECAL

Front Floor Plate

1шт.

17

87716230

EMBLEM

1шт.

18

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

9шт.

20

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

21

353-593

PLUG

4шт.

22

495-81001

WASHER,5/16"

2шт.

23

87613206

WASHER,0.22" ID x 0.75" OD x 0.06" Thk

6шт.

24

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

4шт.

25

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

26

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

27

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Captive

12шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

29

84144090

GUIDE

Steering Hoses Under Cab

1шт.

30

425-104

NUT,1/4"-20, Cl 5

3шт.

31

60-6708T1

NUT

4шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

33

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

34

47558215

Intake Plate

GASKET

1шт.

35

47600236

Assy, Air Intake

PLATE

1шт.

36

139598A3

COVER

RH

1шт.

37

447209A1

DECAL

Roof Cap

2шт.

38

353-405

PLUG,Dome, .562" hole, Nylon

2шт.

39

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Use from 2016

2шт.

Выбрано товаров: 40
